Dahtec Formwork System (DFW)

The Dahtec Formwork System (DFW) is our line of steel formwork system using steel formwork modules for forming concrete molds. This formwork system boasts heightened construction speeds and significantly lower life cycles. The DFW is versatile and suitable for a variety of construction applications.

FORMWORK SYSTEM COMPONENTS

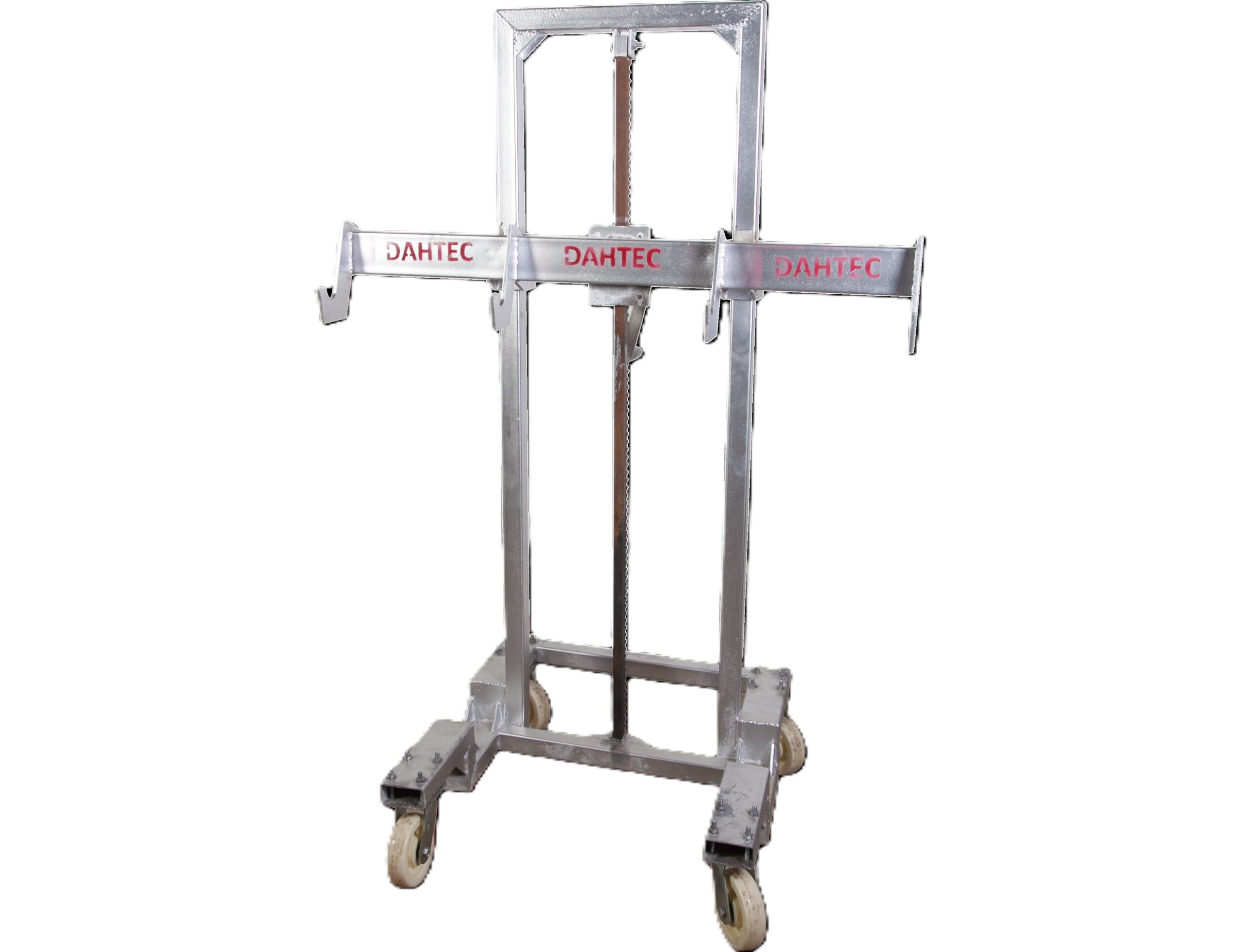

Tableform Trolley

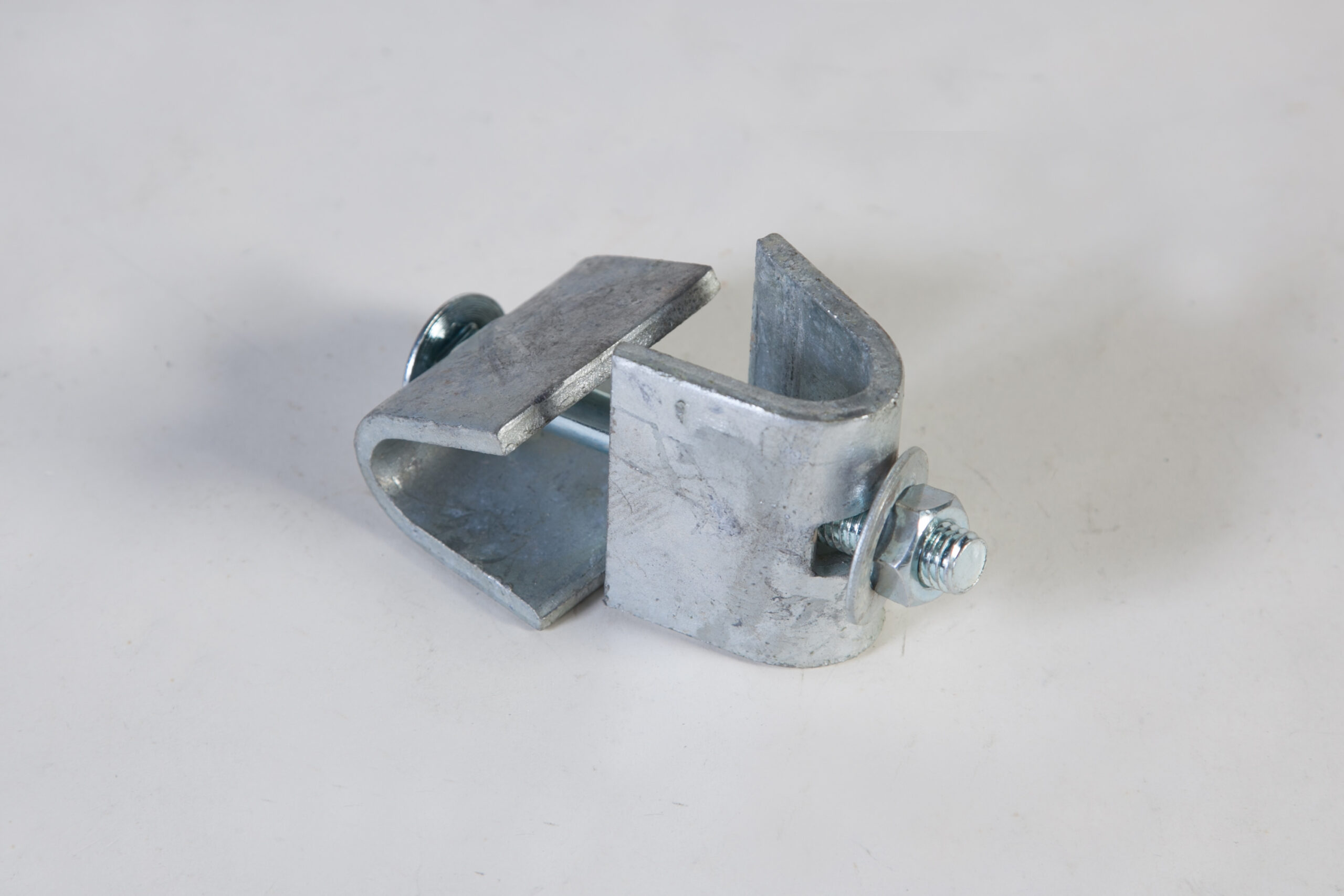

T Clamp

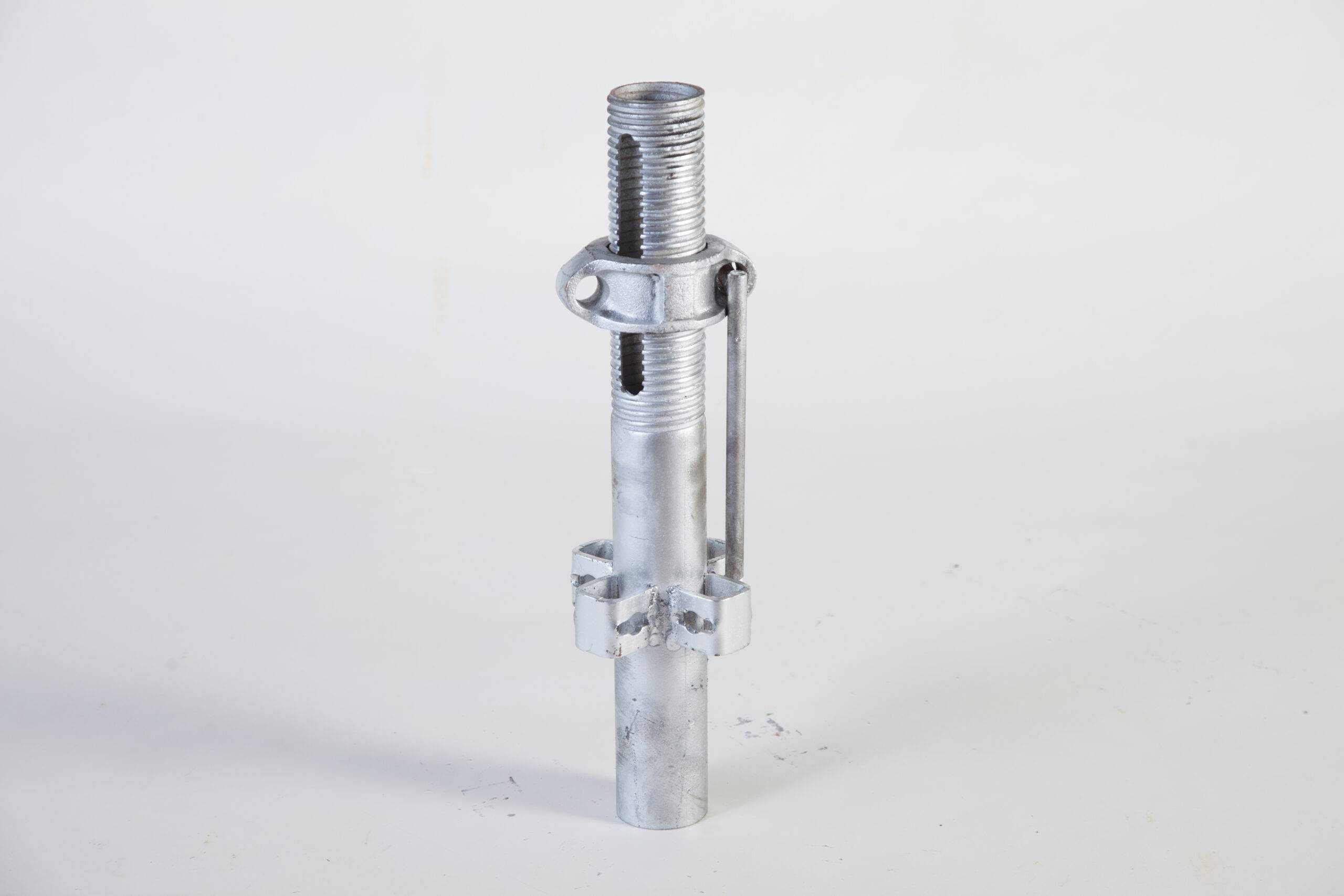

Adjustable Starter Member

Universal Clamp

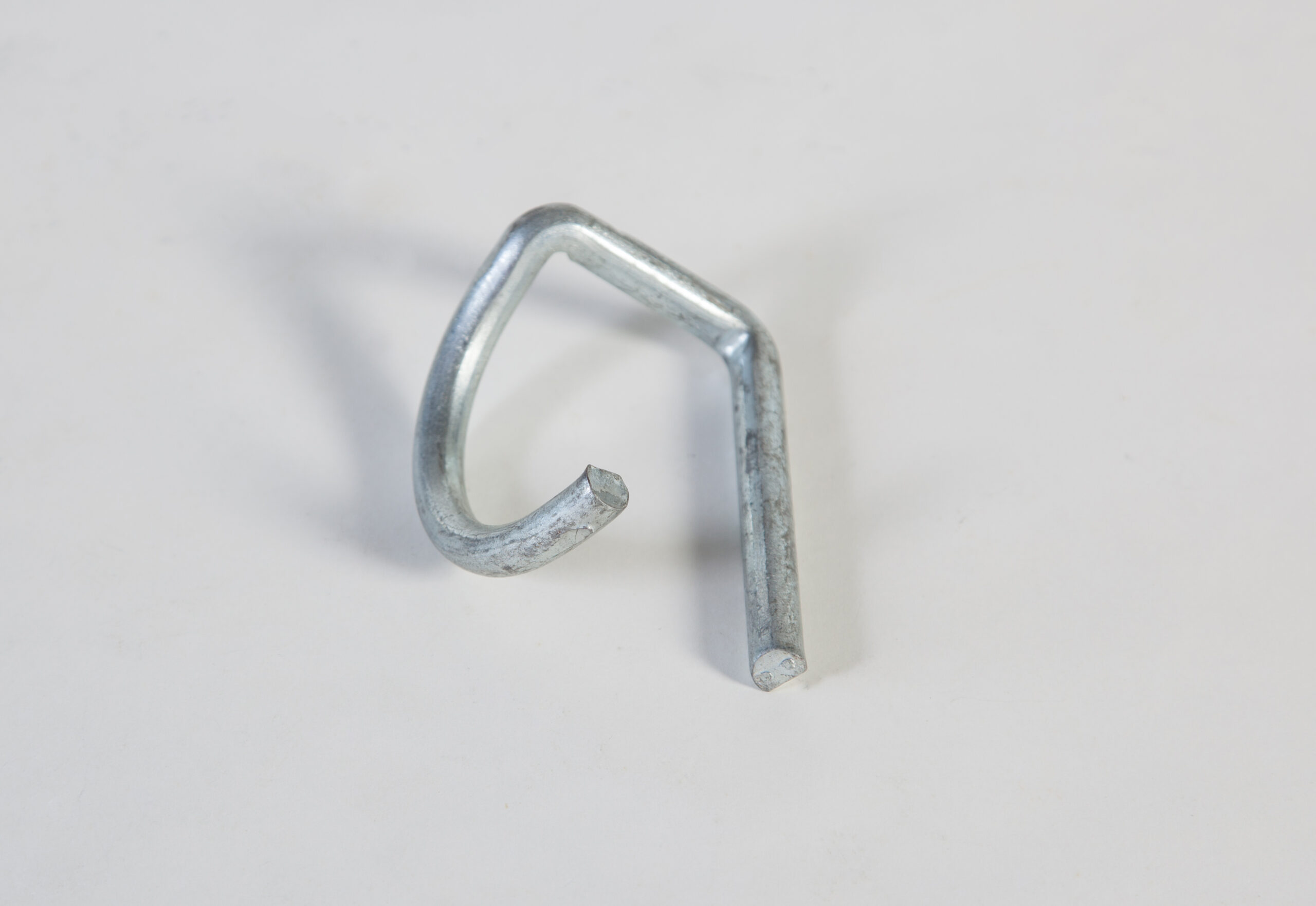

S Pin

Vertical standard

DSS Beam T250

DSS Beam S125

DSS Beam S150

DSS Twin Beam T125

DSS Twin Beam T150

DSS Waler

erection procedure

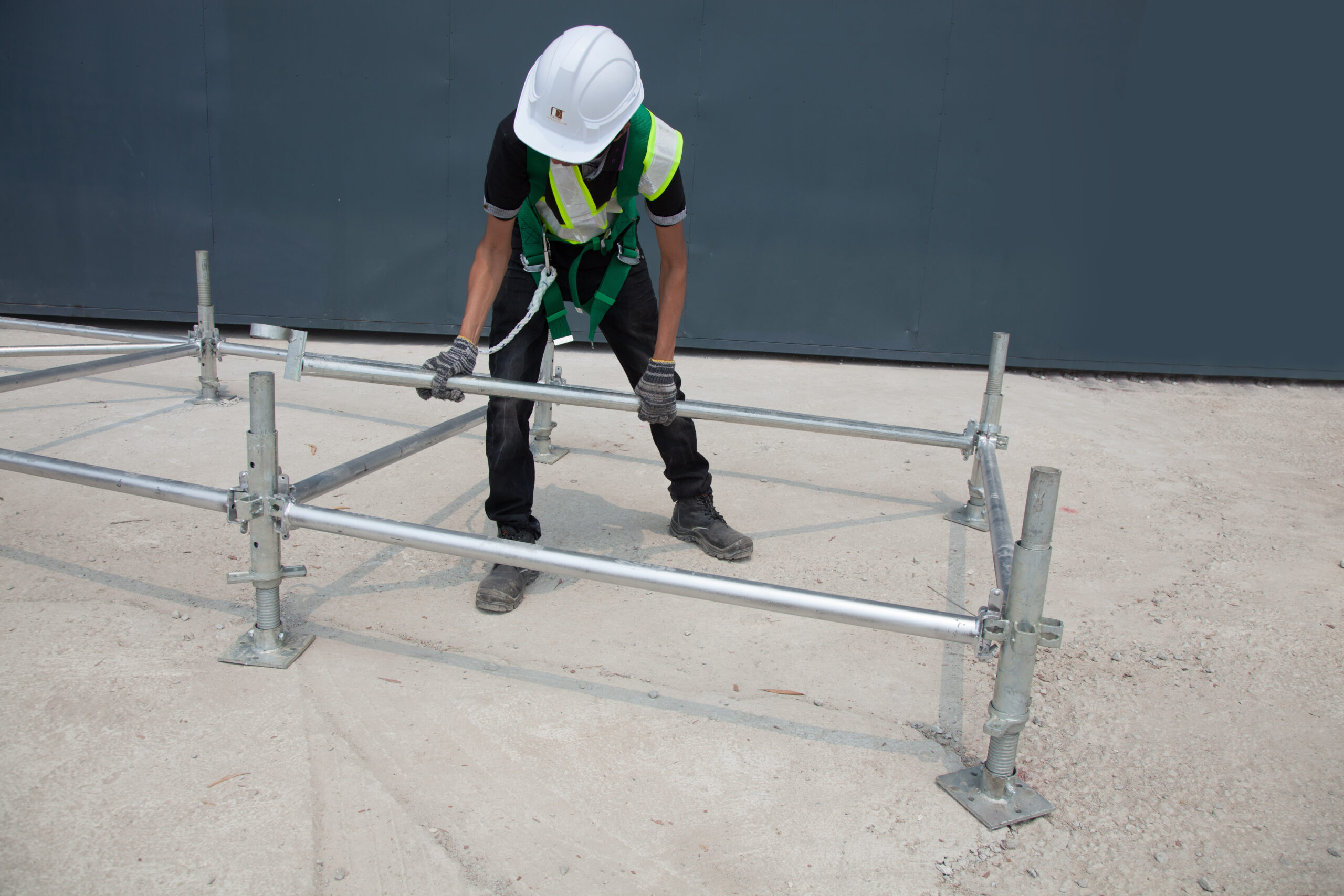

Position jack base at the intervals determined by the horizontal member.

Fit the starter member into the jack base. Fit the horizontal member. Check levels.

Insert the vertical standard into the starter member. Fit the second level horizontal member.

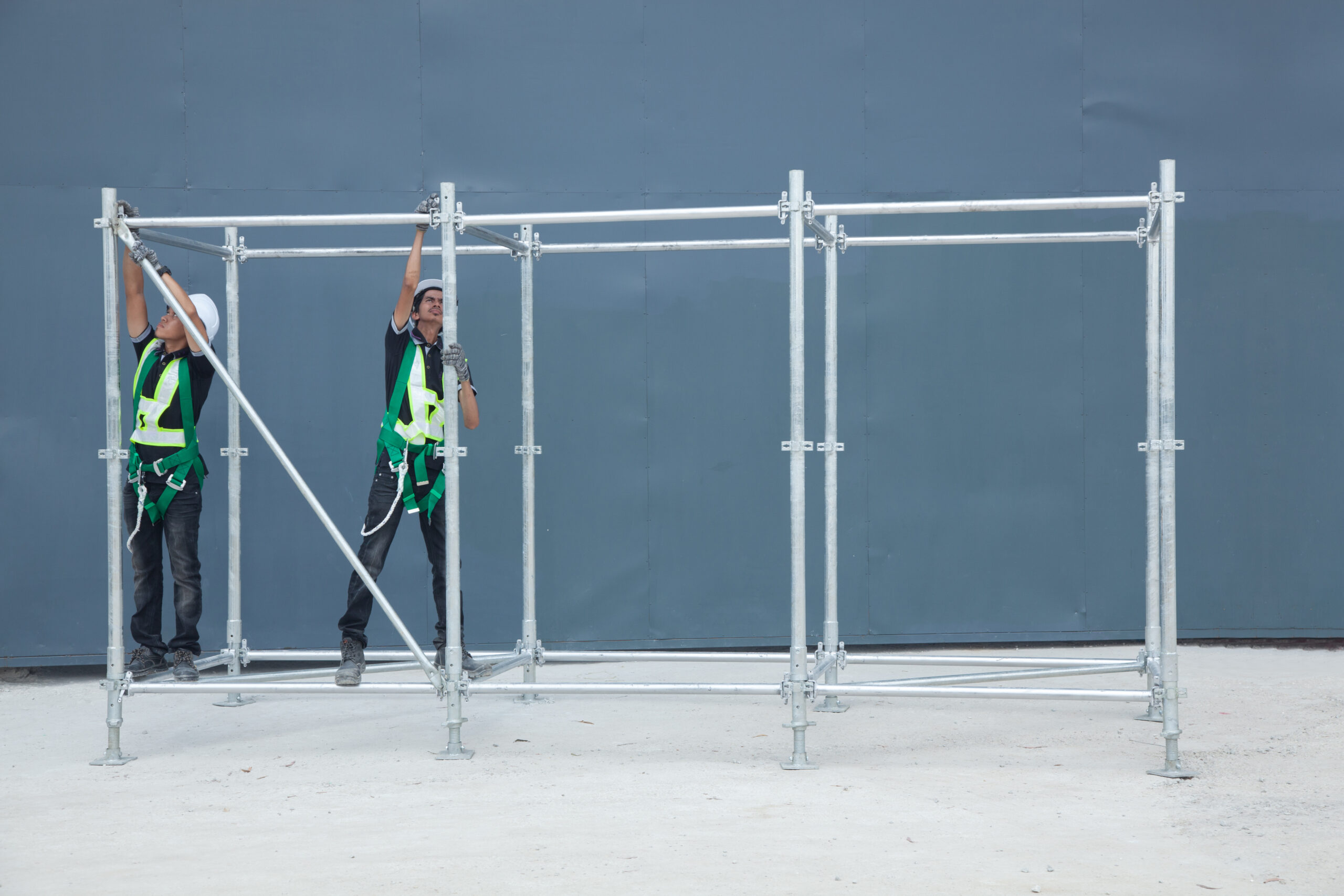

Fit the diagonal brace.

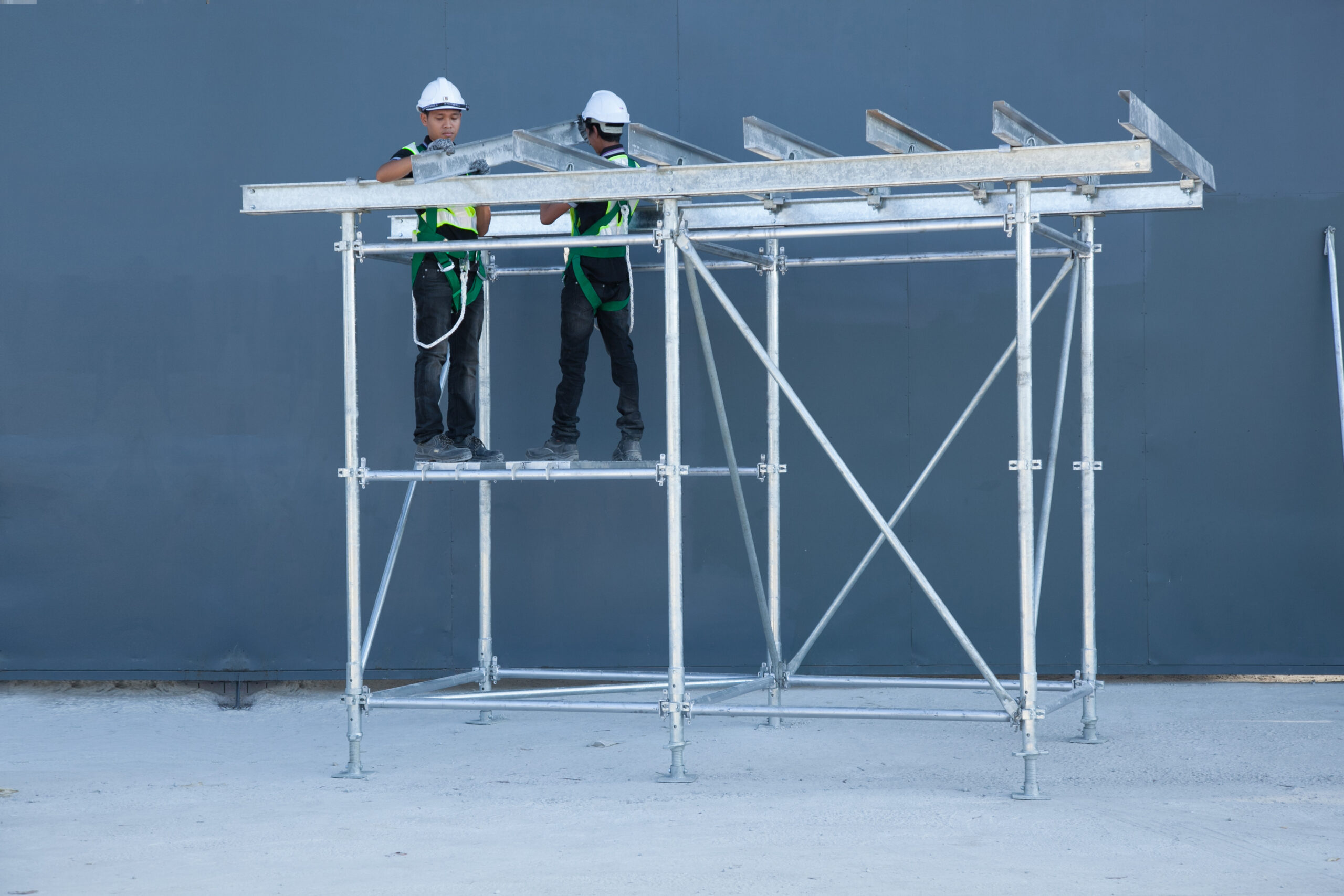

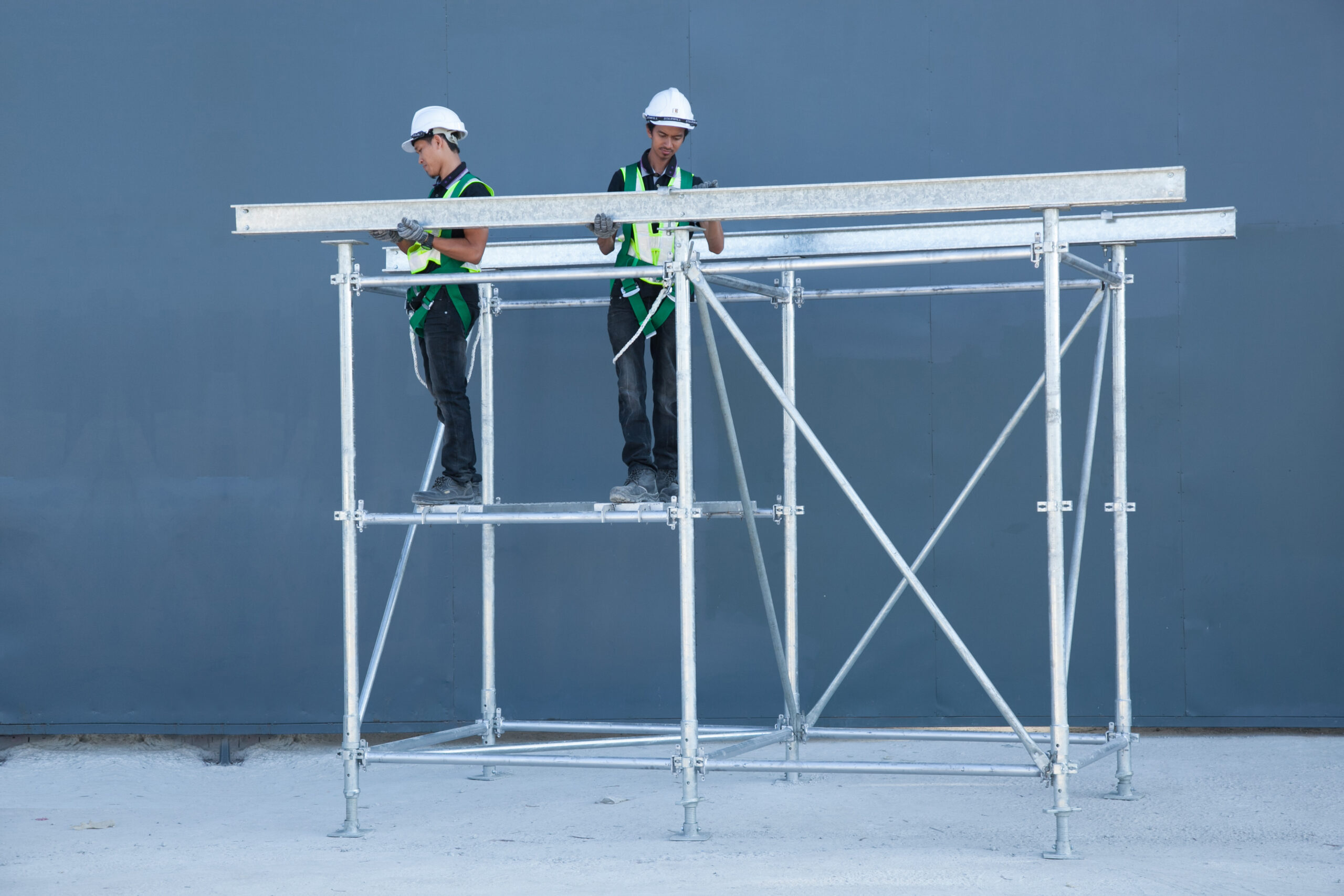

Place the main bearer and secondary runner of soffit formwork.

Position temporary platforms. Install top plate.

Fasten the secondary runner onto the main bearer by universal clamp.

Complete the Formwork for fitting main bearer and secure plywood/ panels onto the secondary runner.

photo gallery

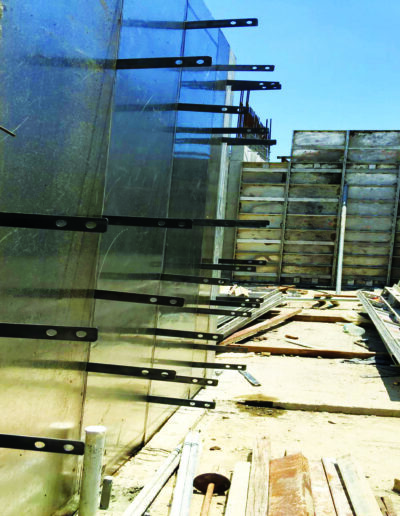

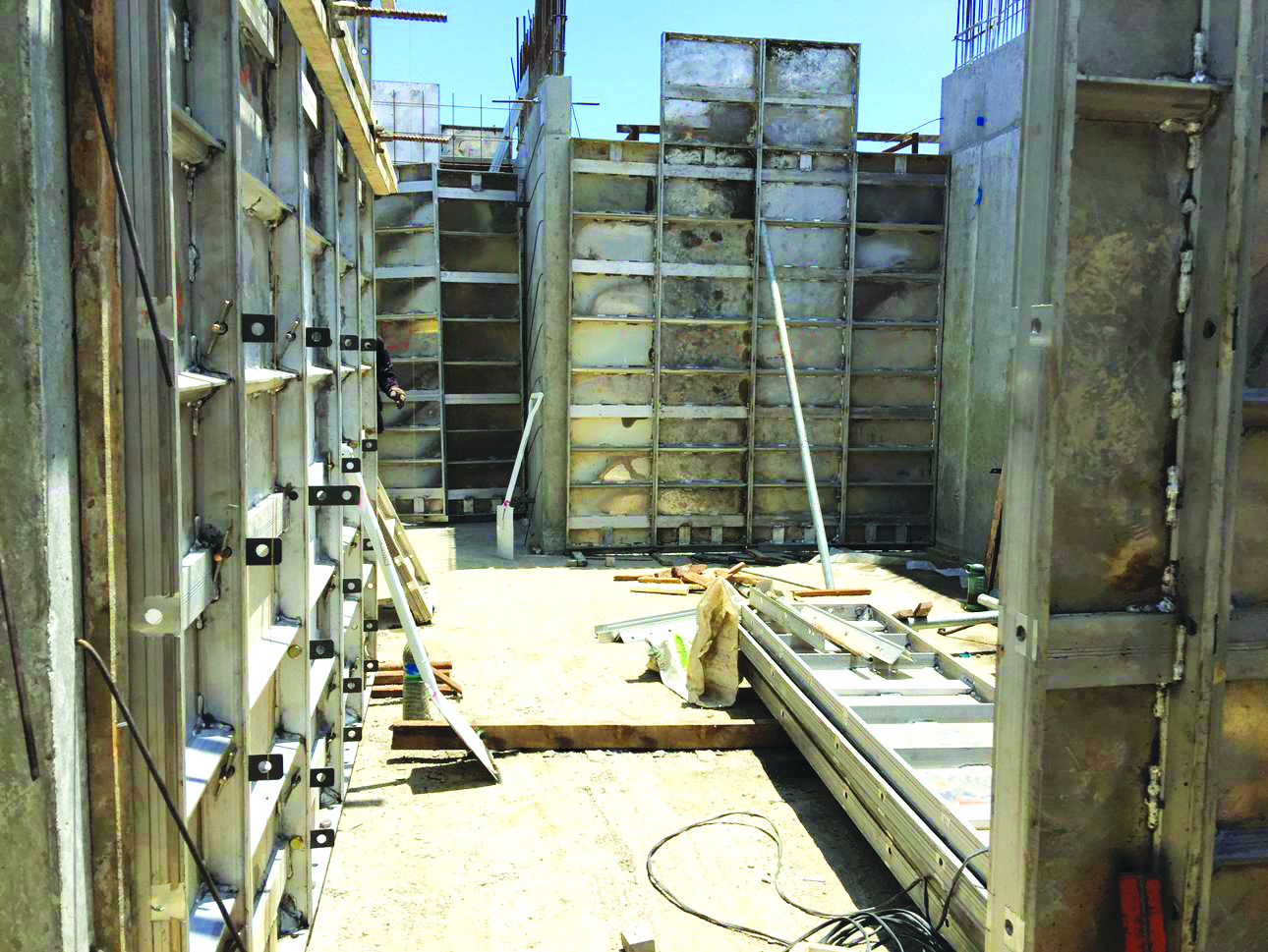

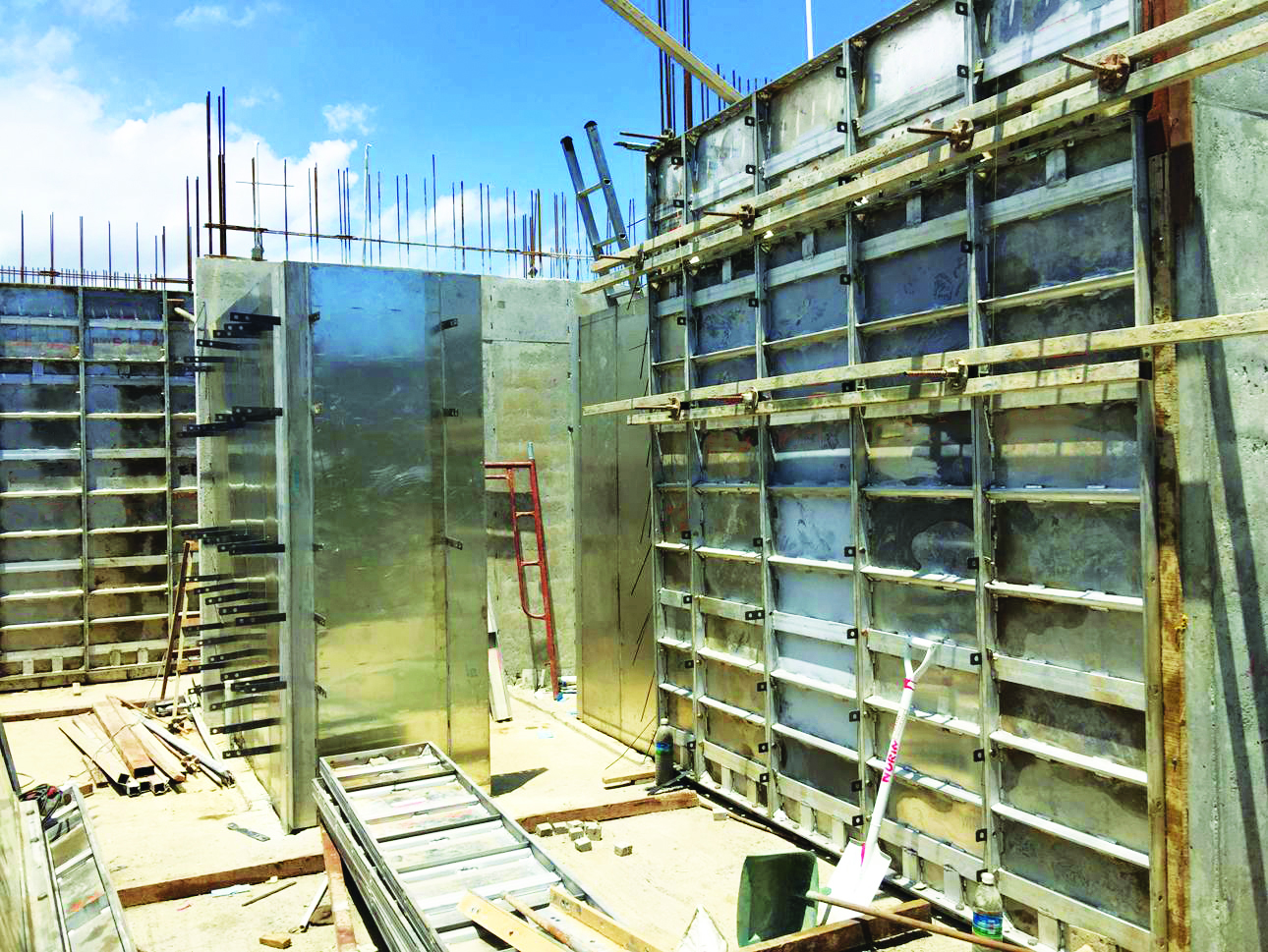

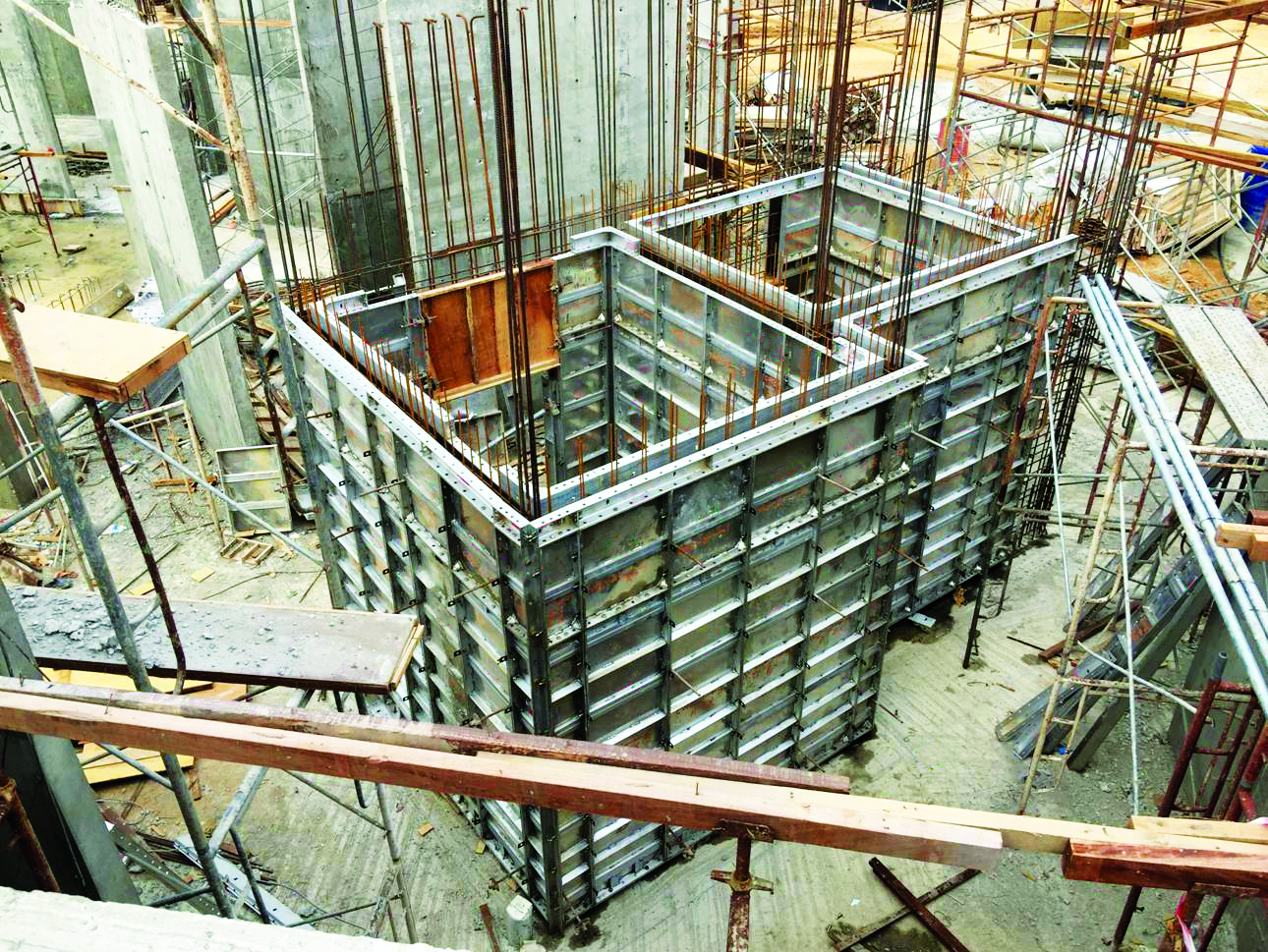

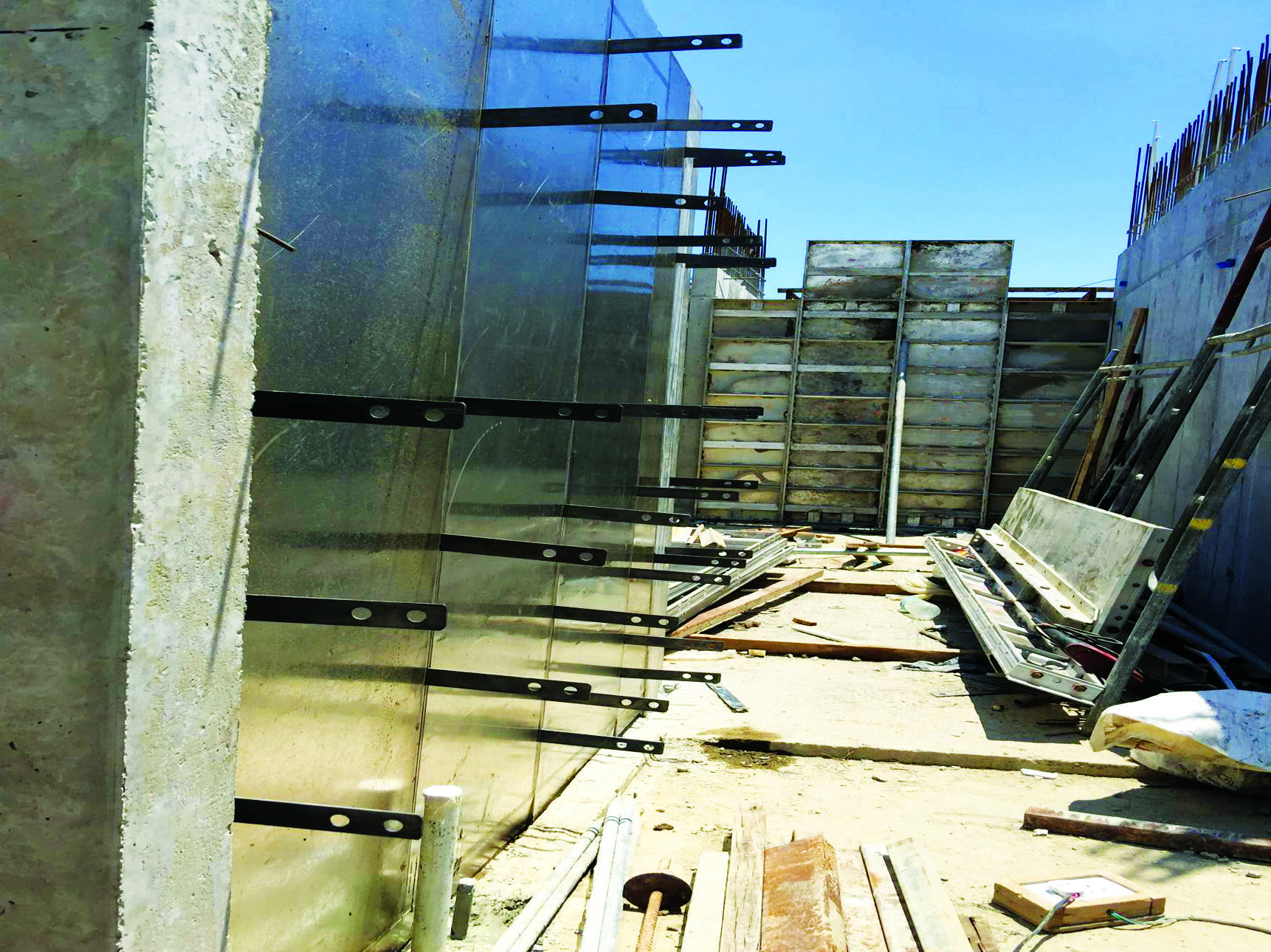

Shear Wall

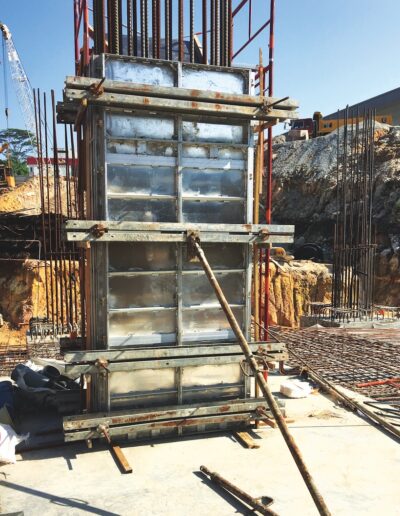

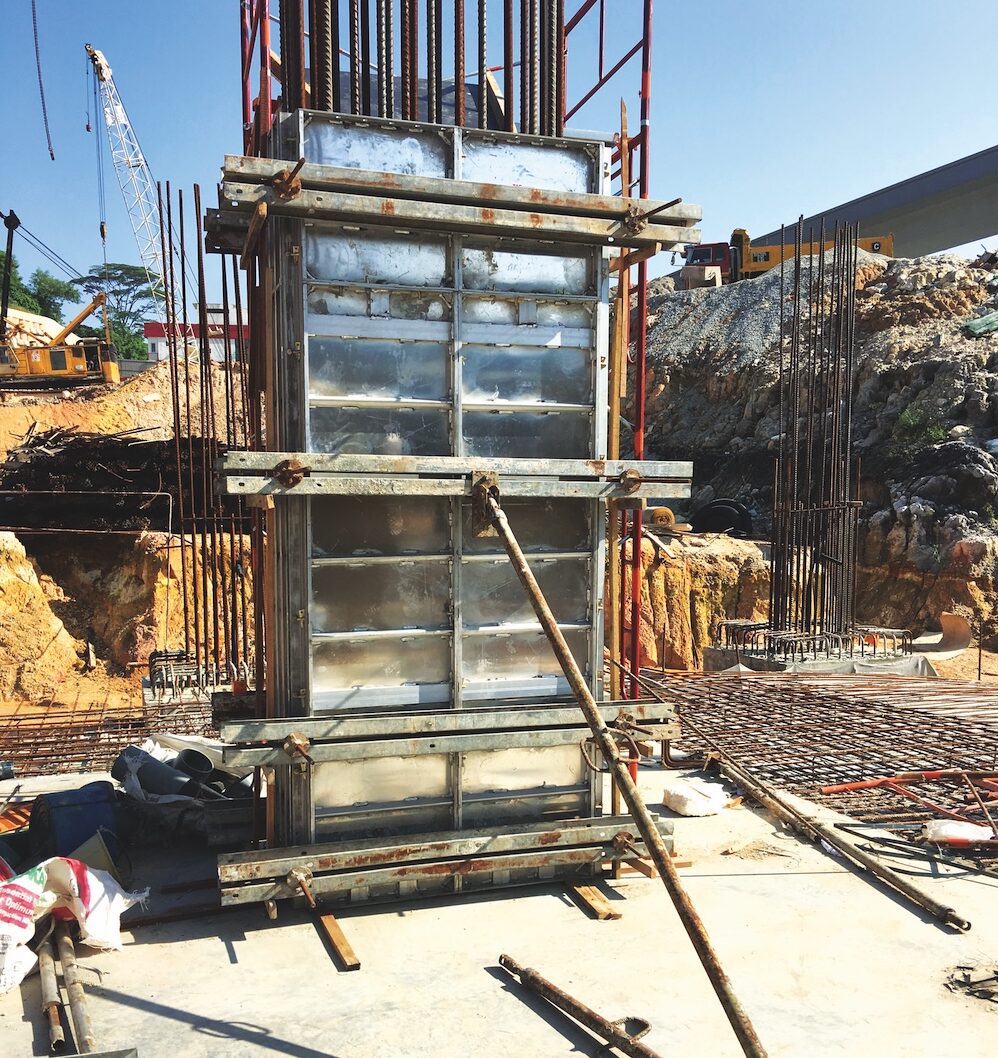

Column Formwork
