DAHTEC MODULAR SYSTEM

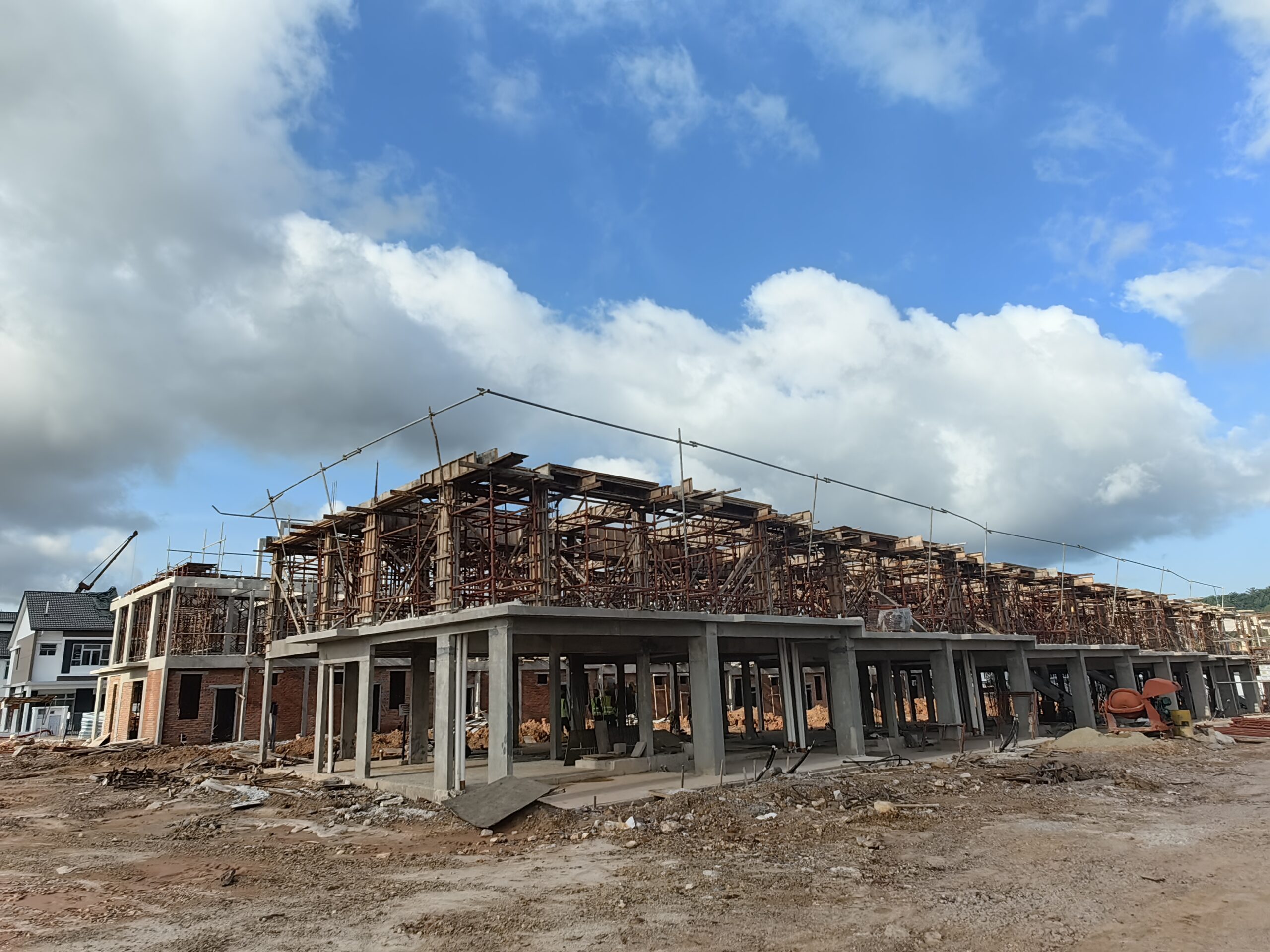

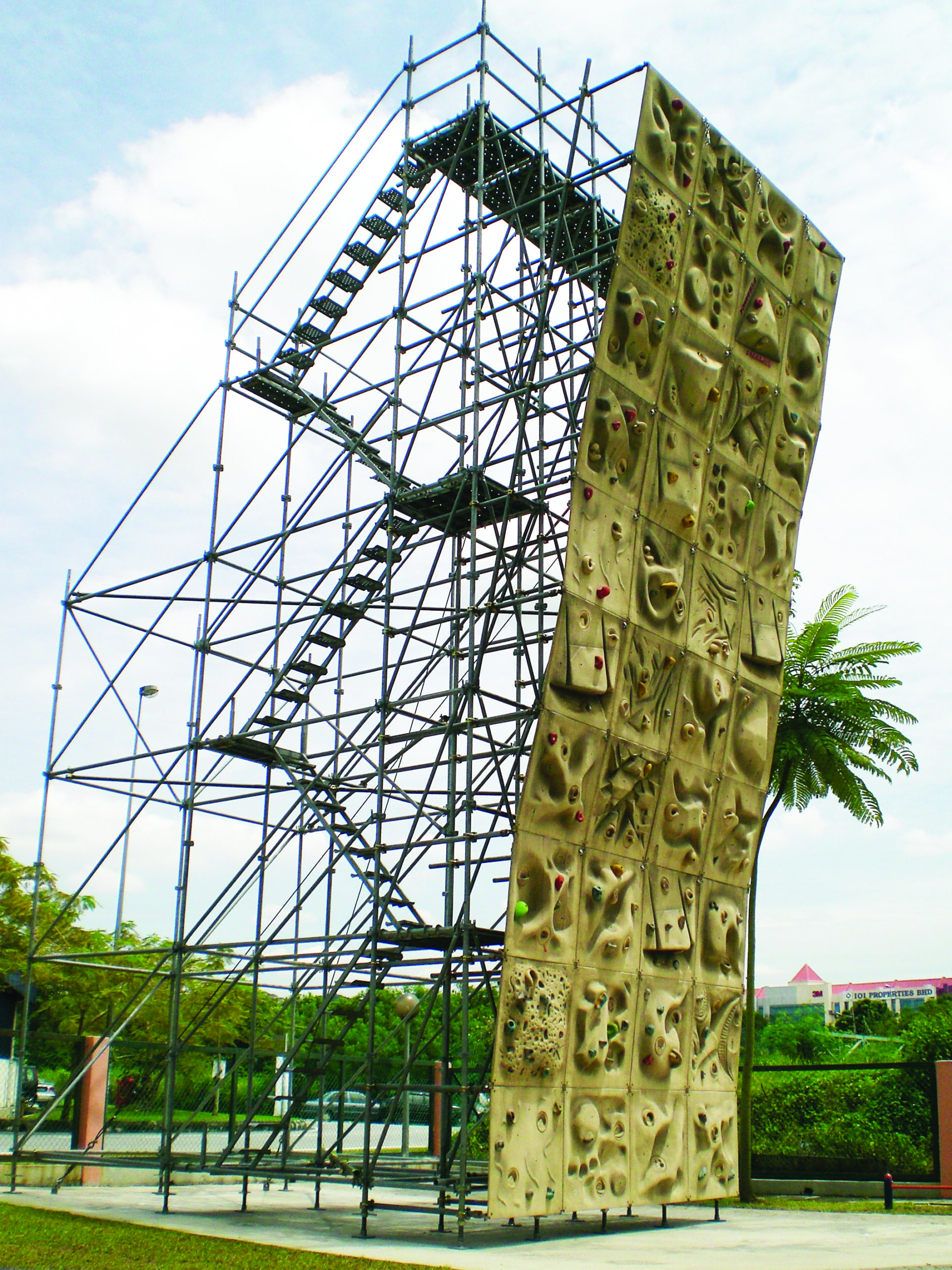

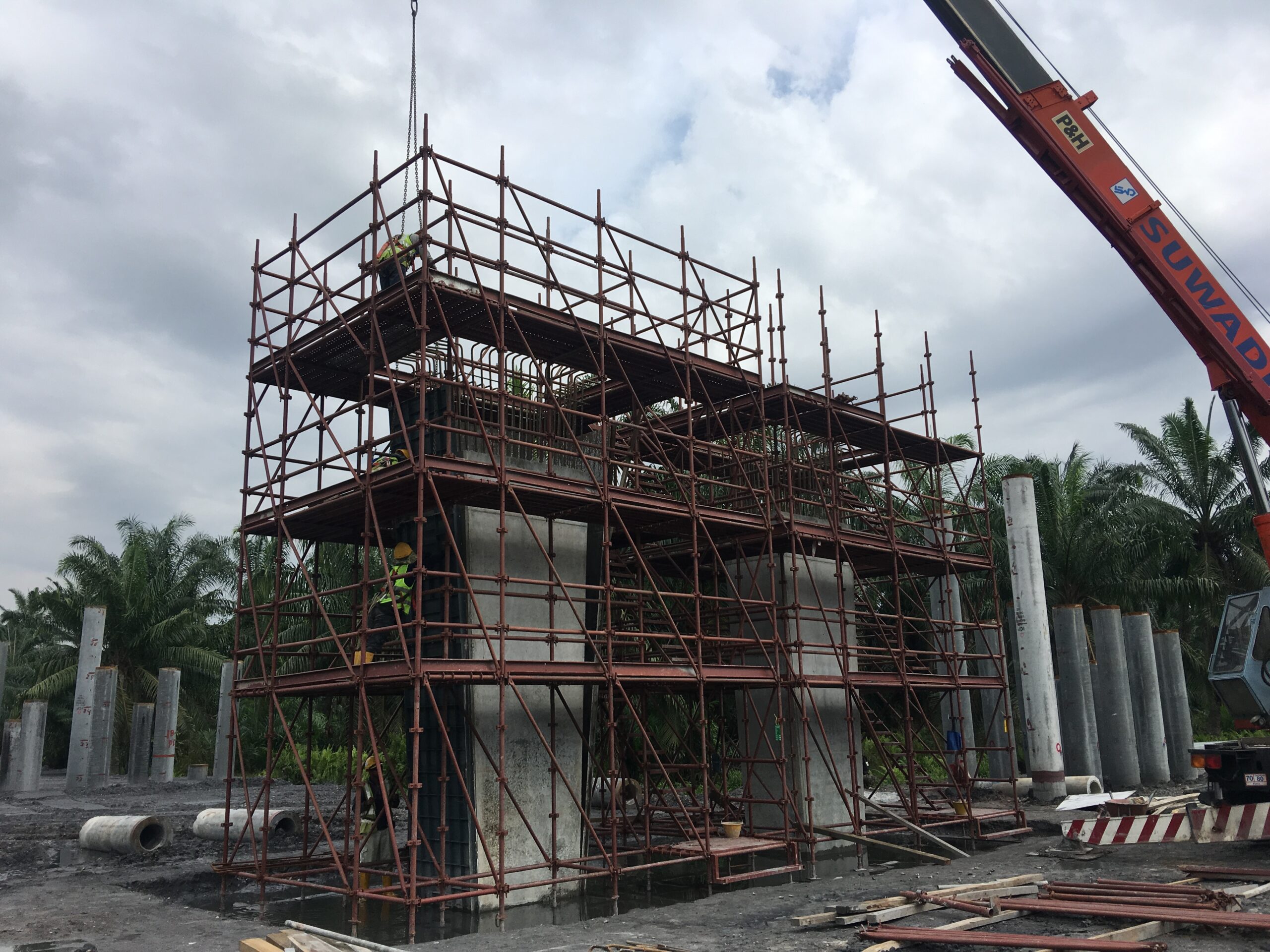

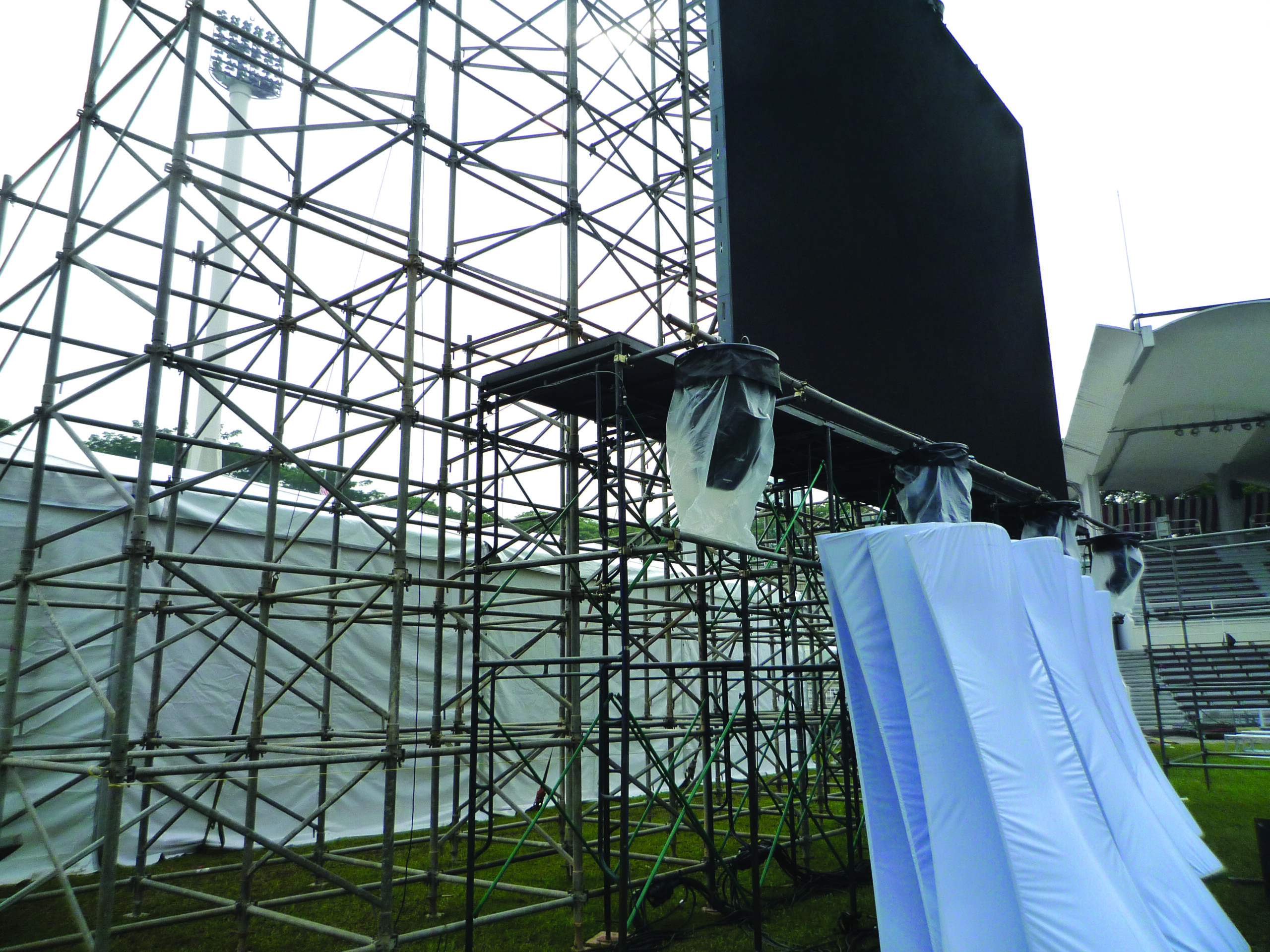

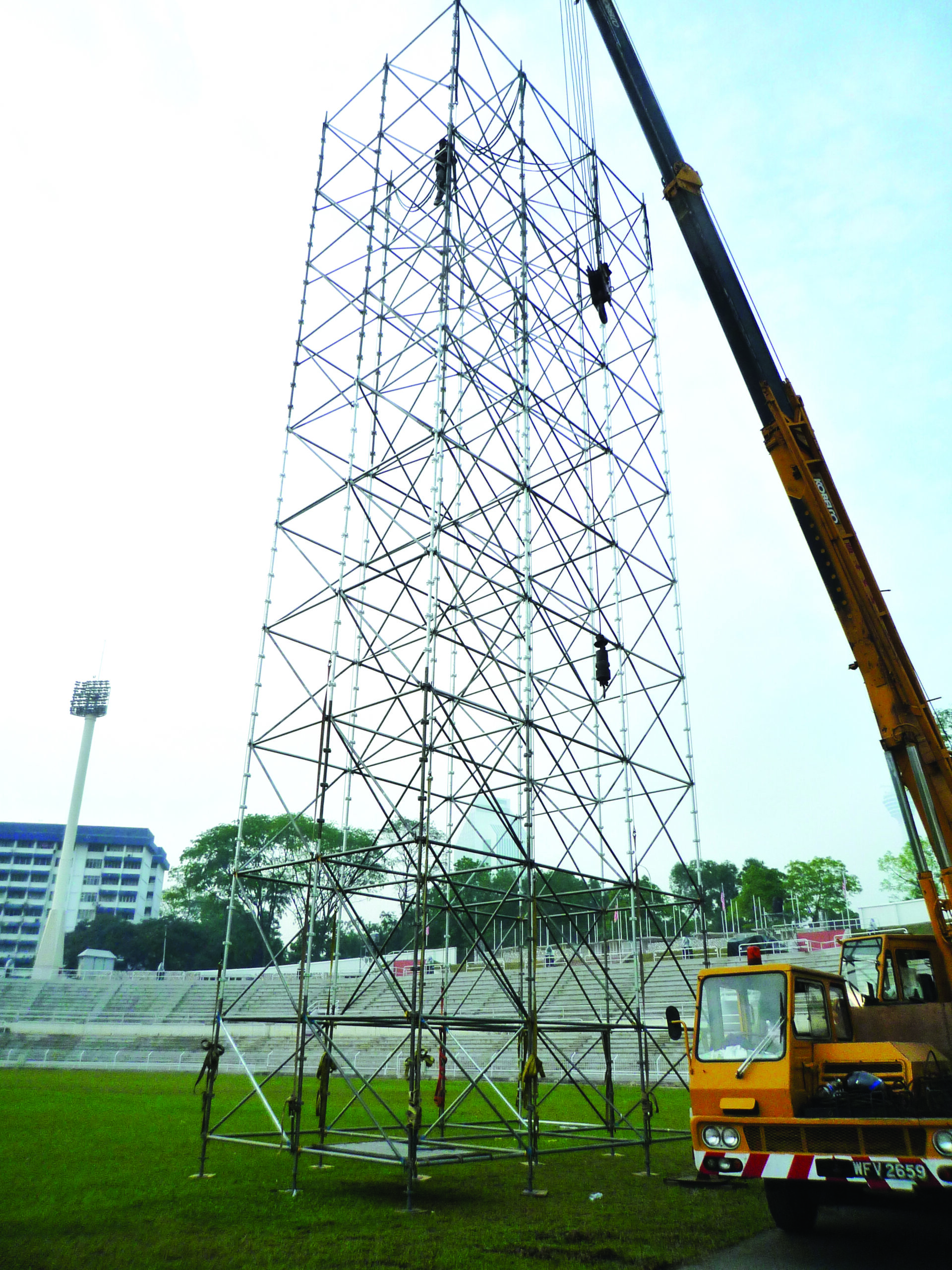

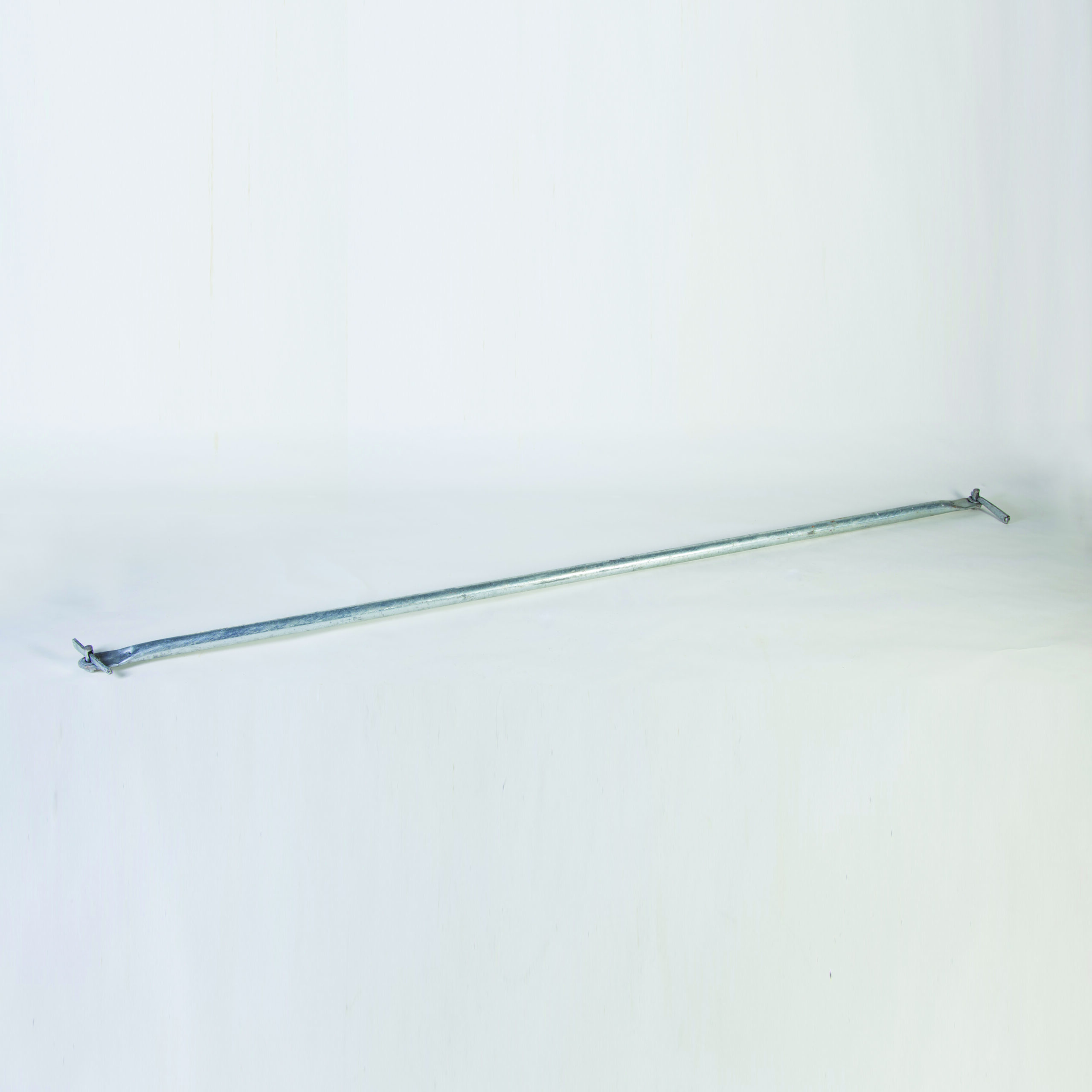

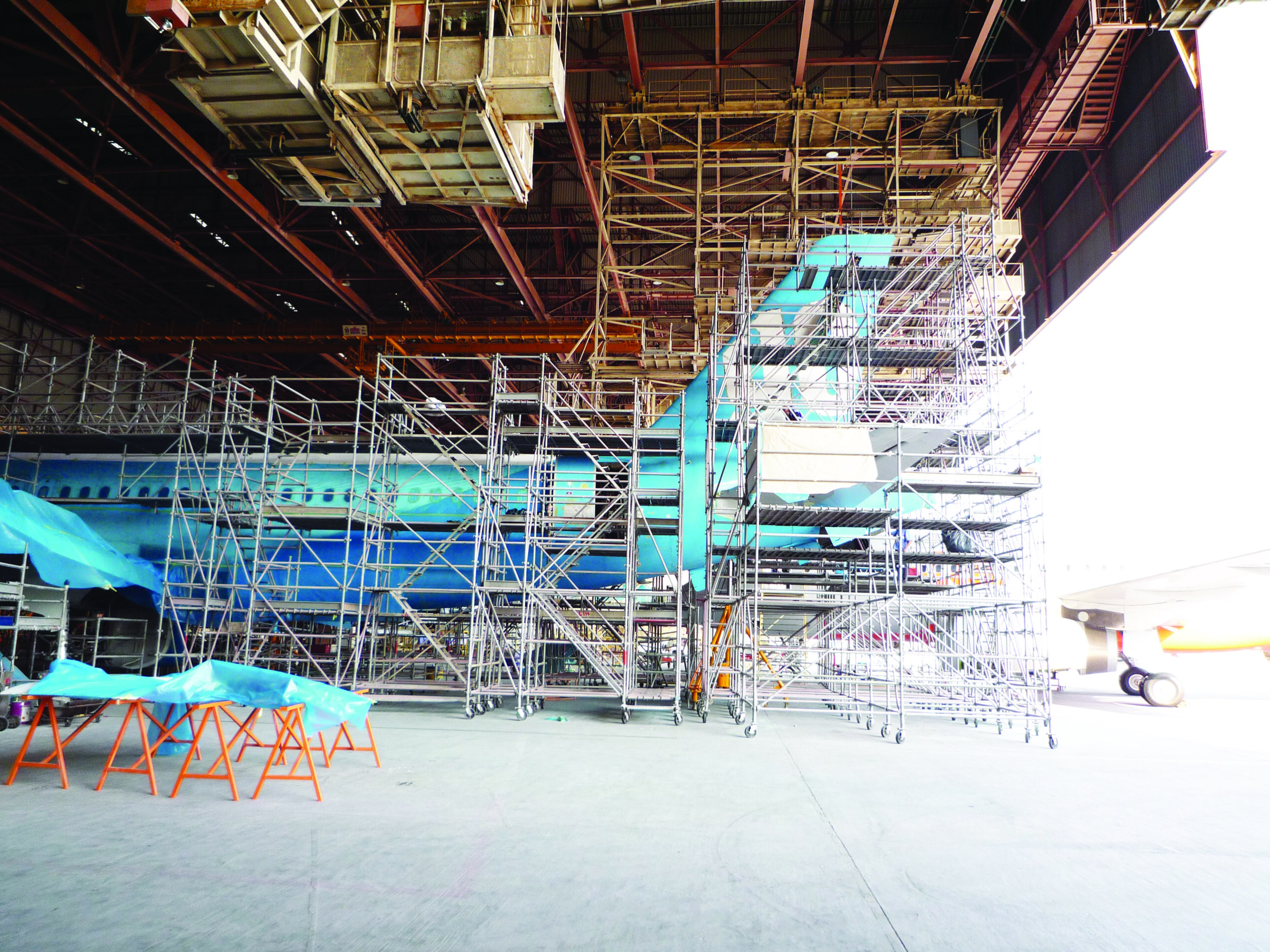

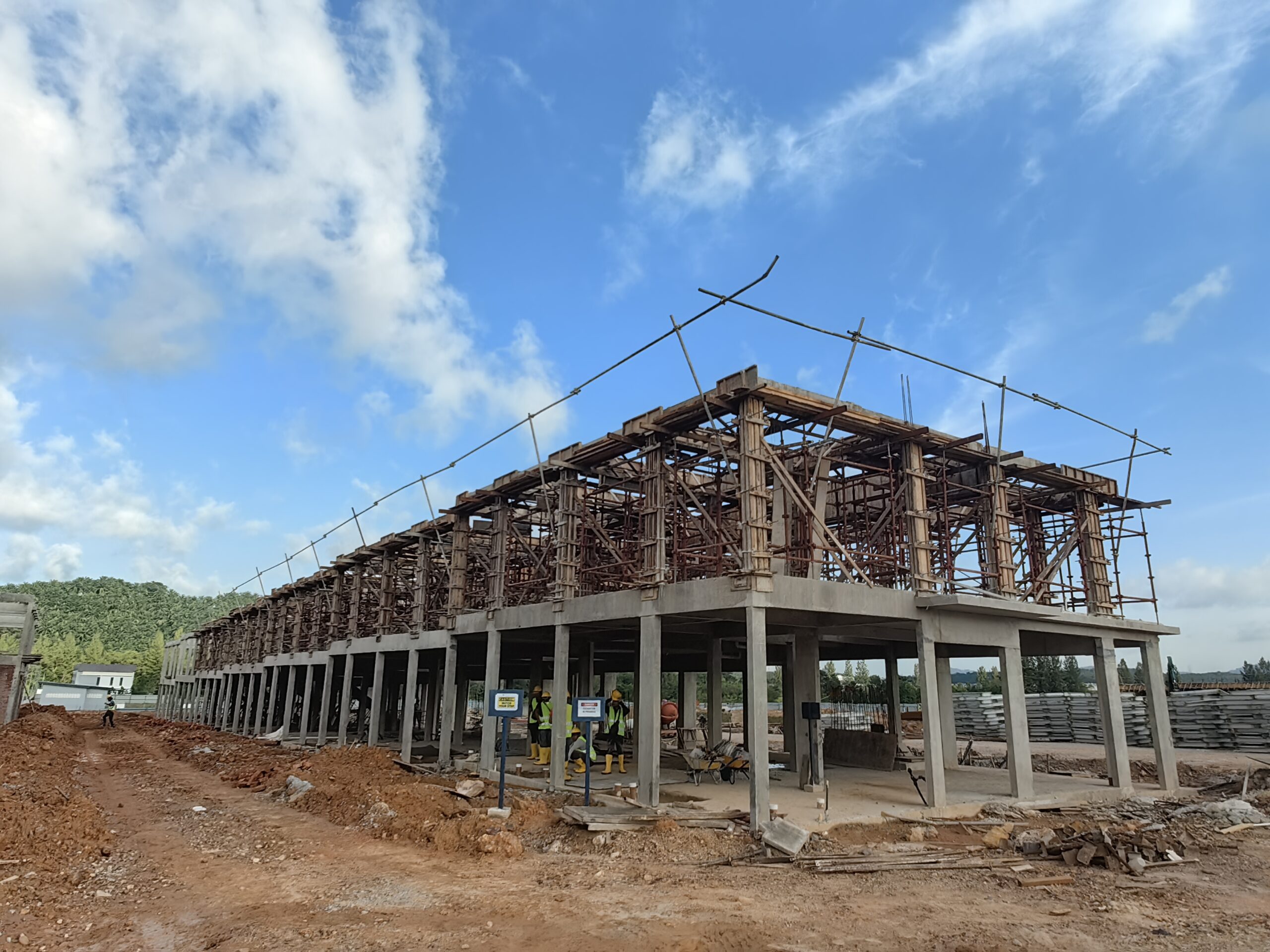

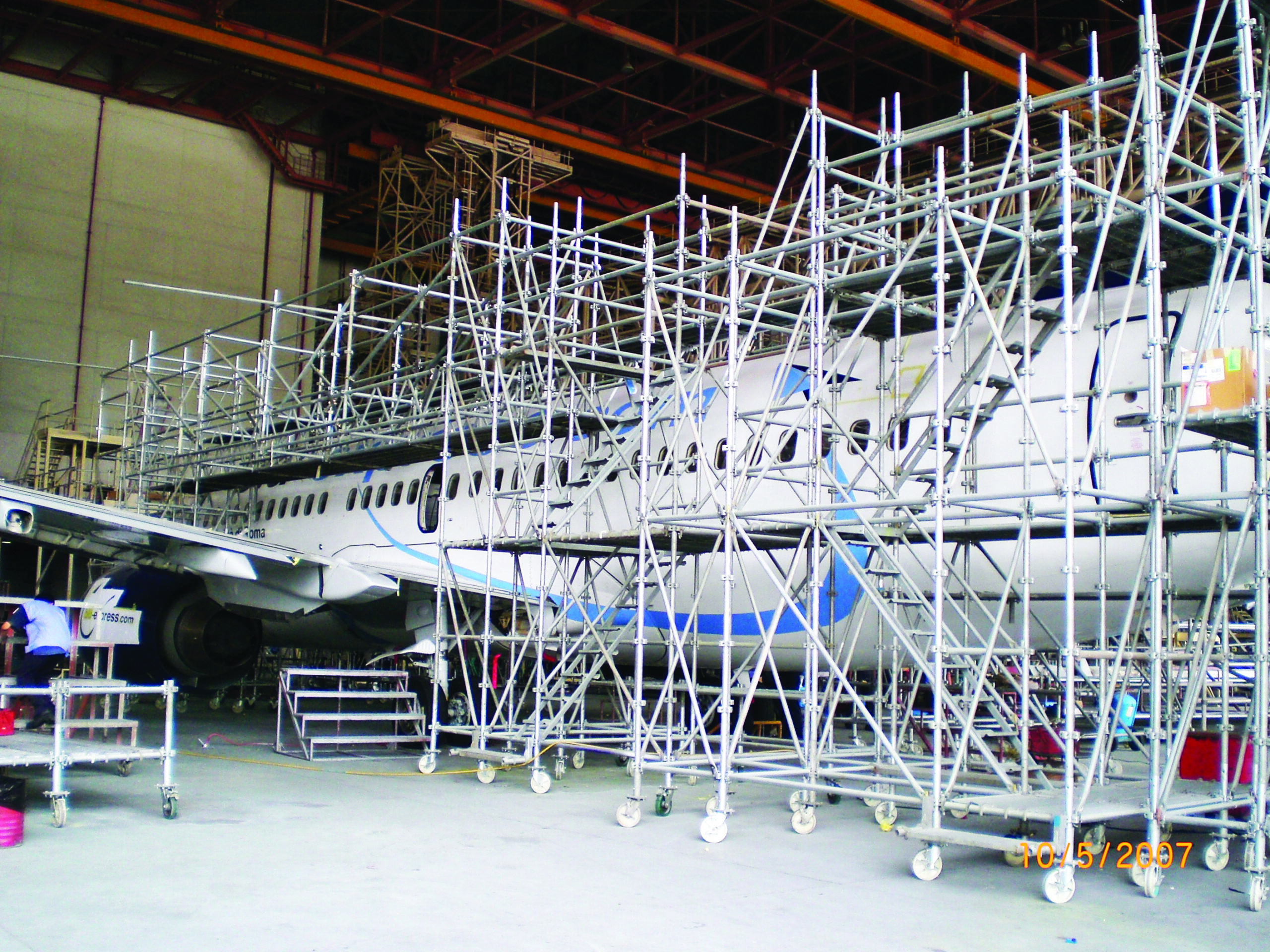

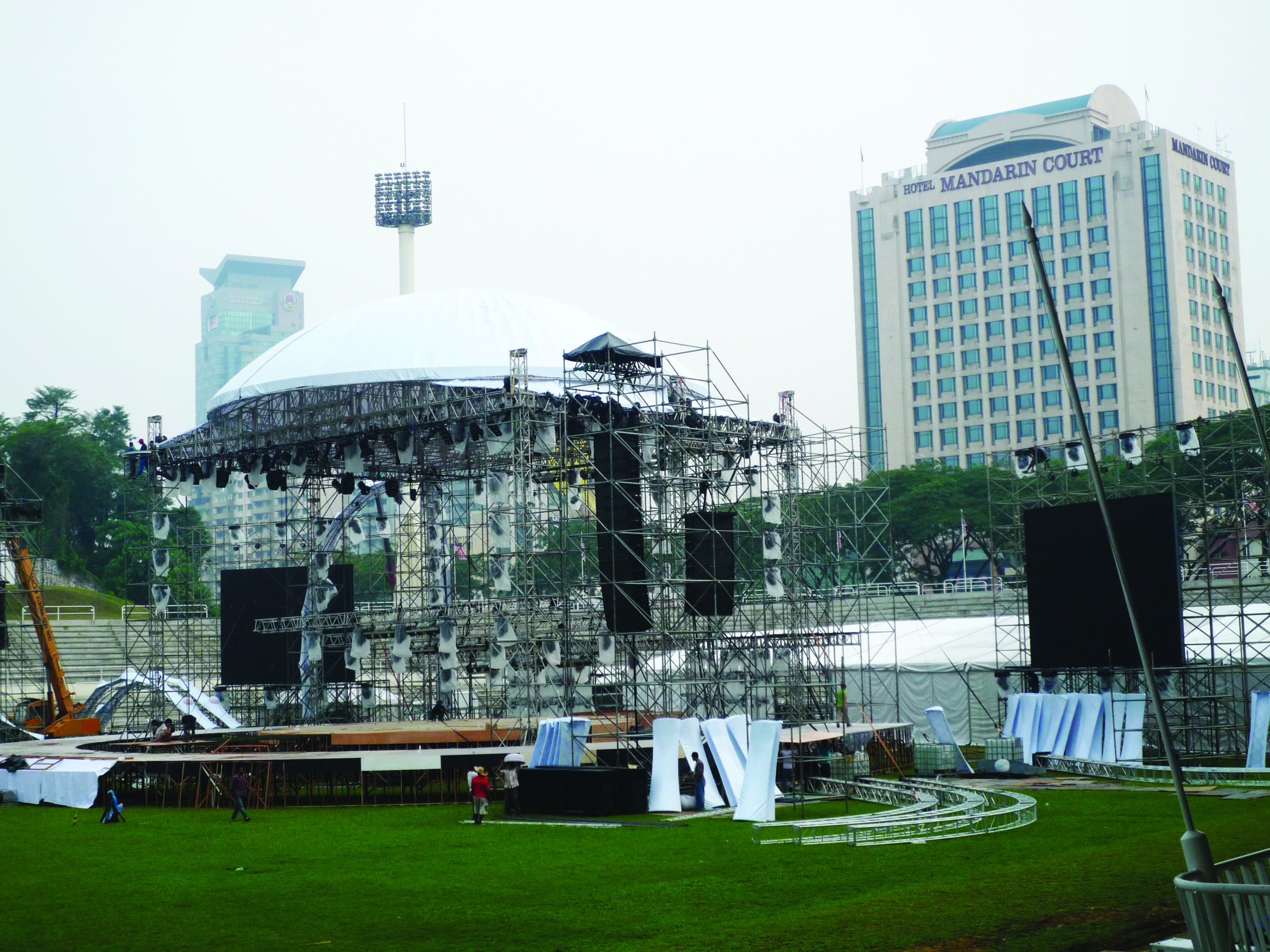

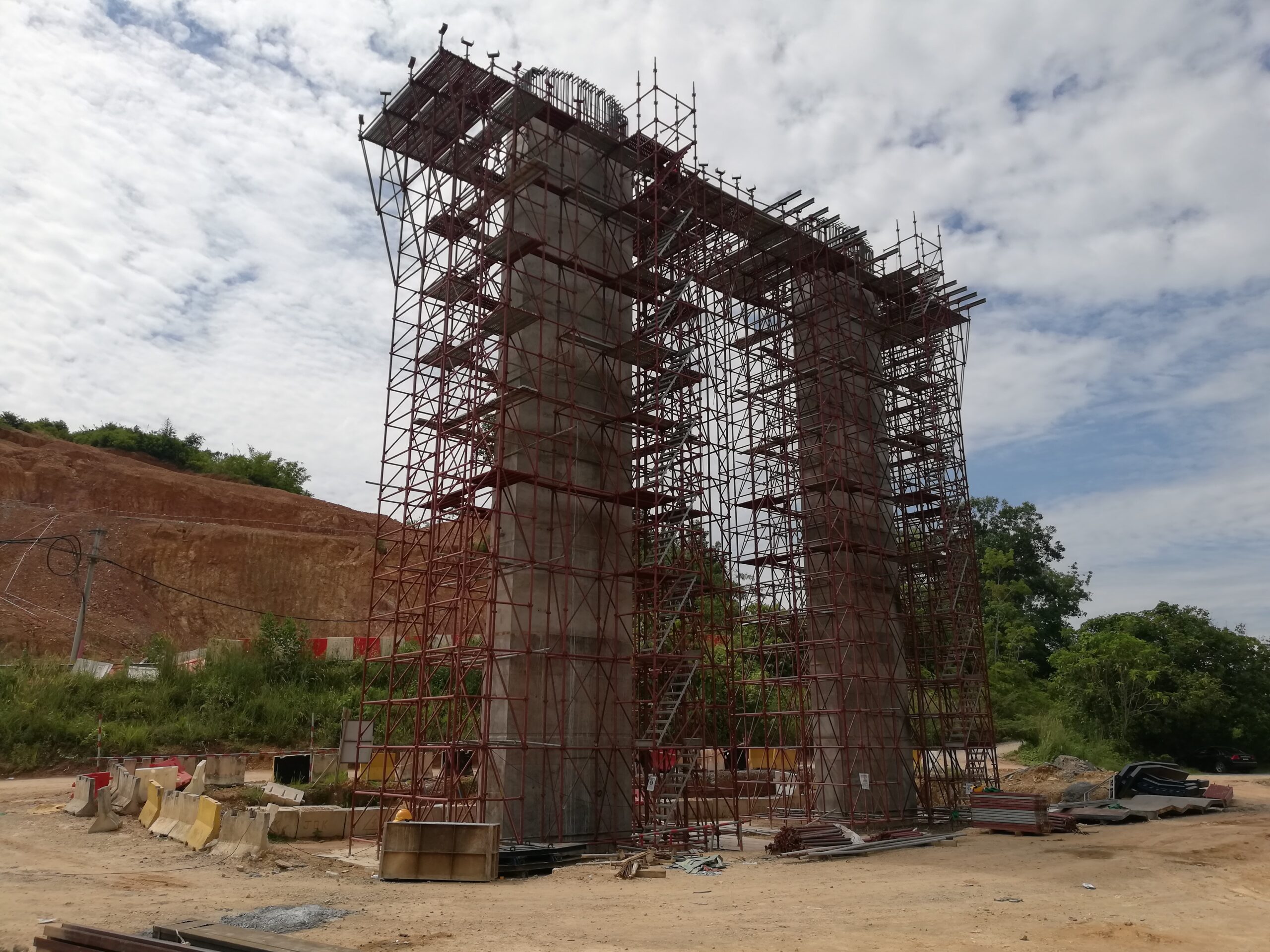

Dahtec Modular System (DMS) is a multilevel and multidirectional scaffold system . The system is manufactured in compliance with the European Standard HD1000, British Standard BS1139: Part 5 and BS EN 12810 – 1& 2. This scaffold system is suitable for use in Building and Public Works, Historic Monuments, Industry, Shows and Special Events erection can be easily done . Each leg is capable of supporting a load of 2.4 tonne and consists of an adjustable leg and standards fitted with stirrups – the key parts of the system – allowing the standards to be linked together, by conventional DMS horizontal members and diagonal braces.

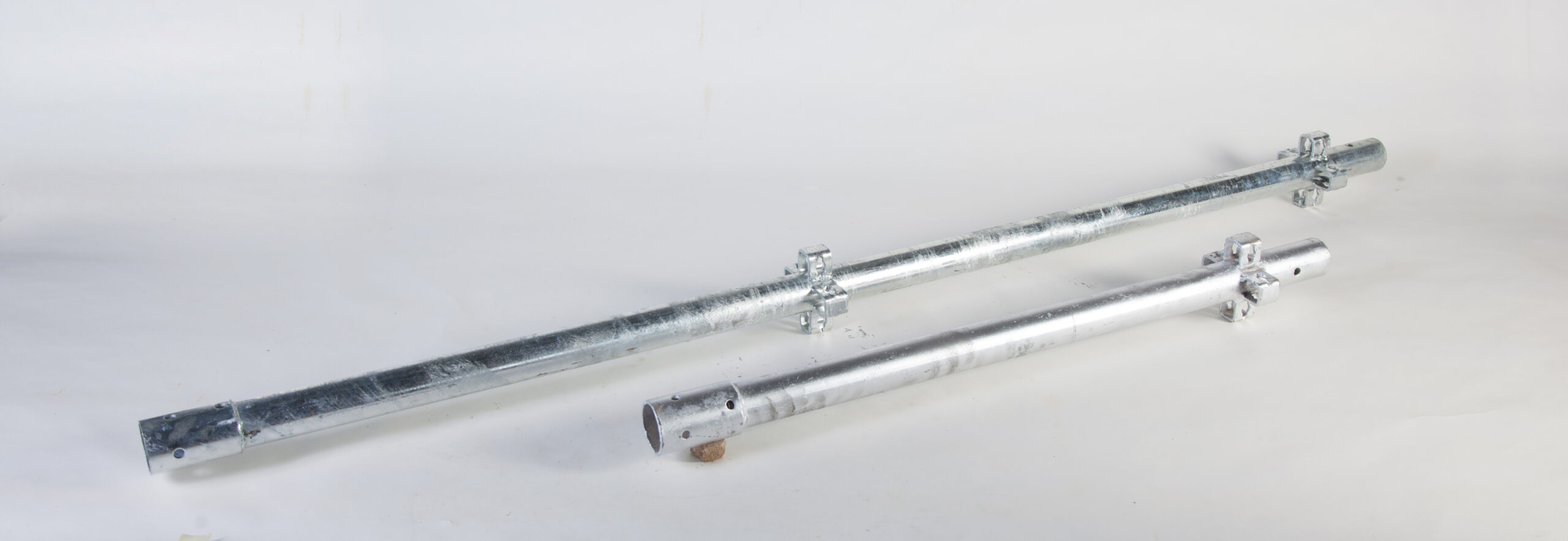

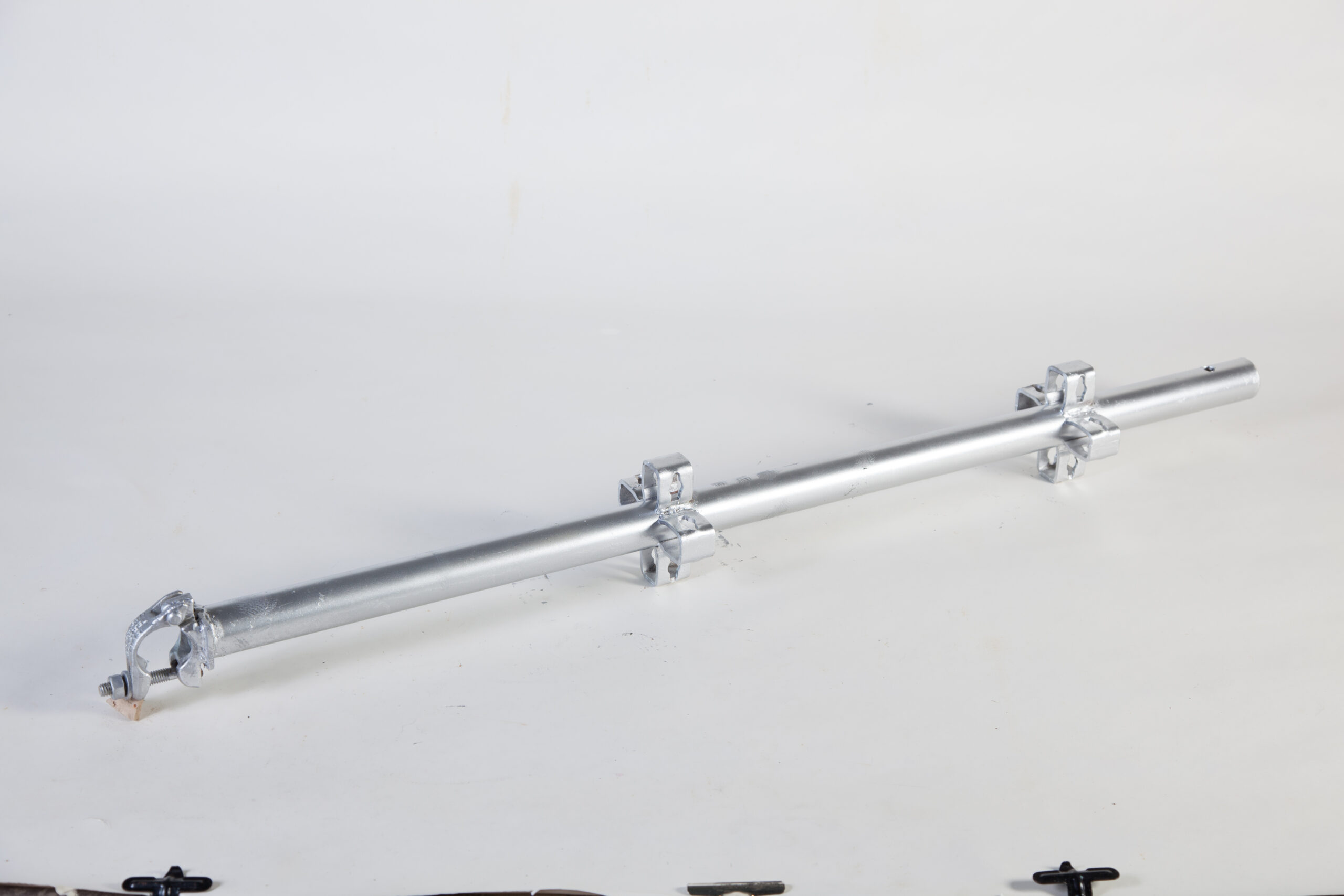

HEAVY DUTY MODULAR SYSTEMS COMPONENTS

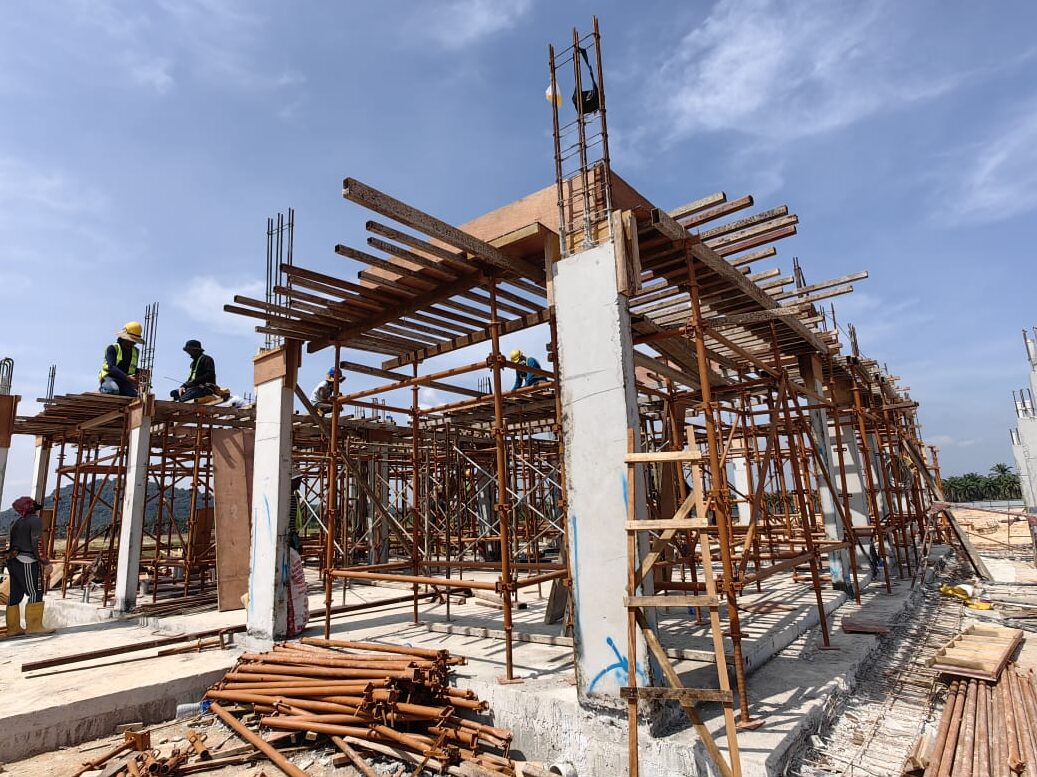

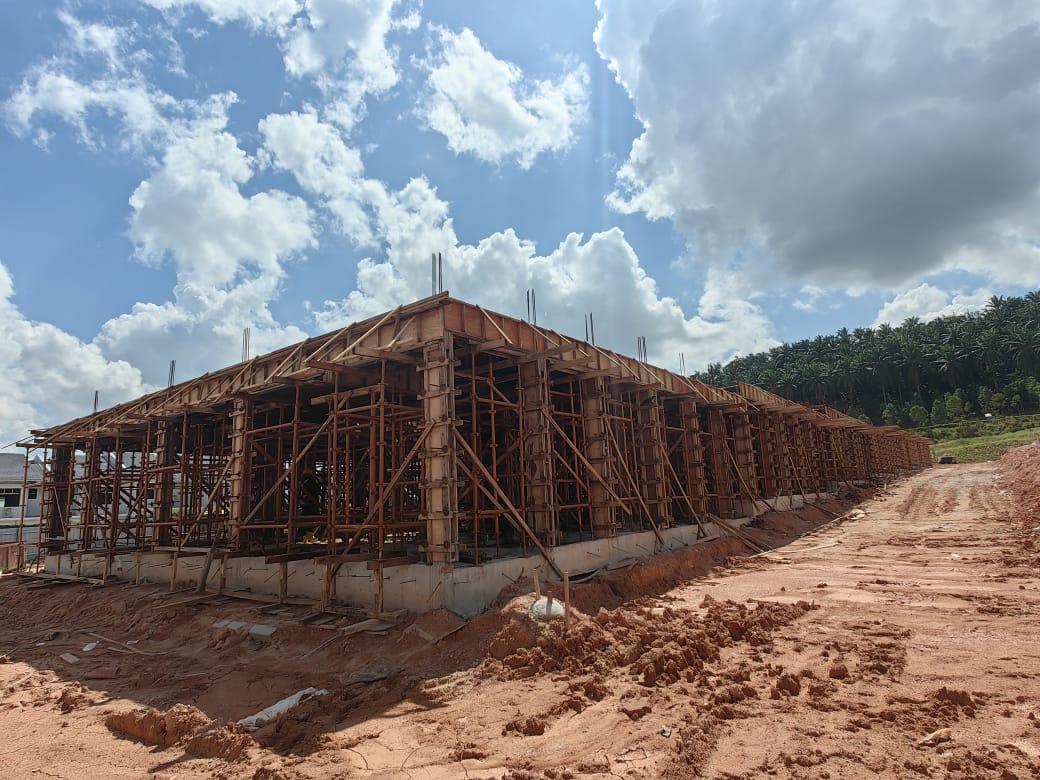

HEAVY DUTY STEEL SHORING SYSTEMS COMPONENTS

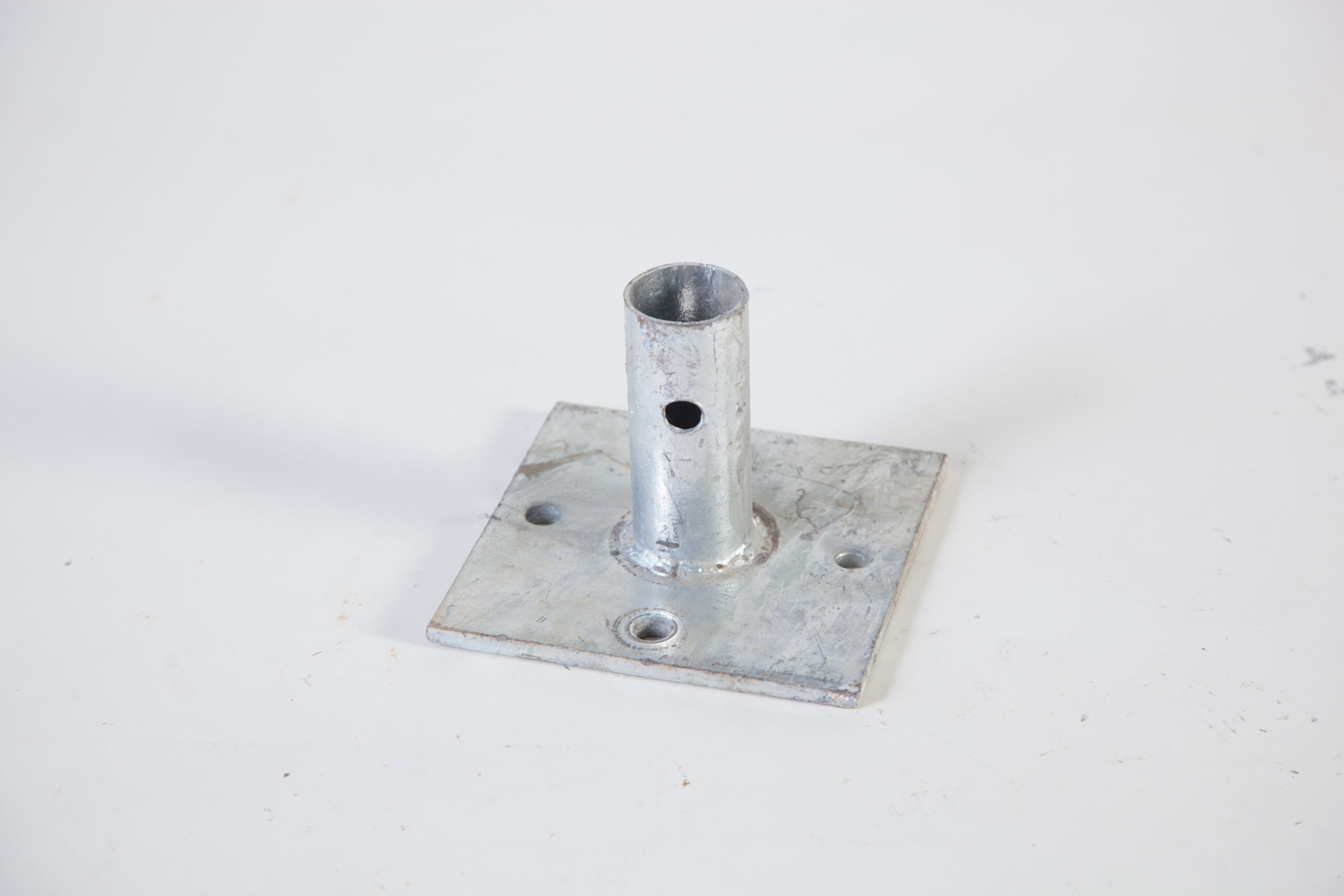

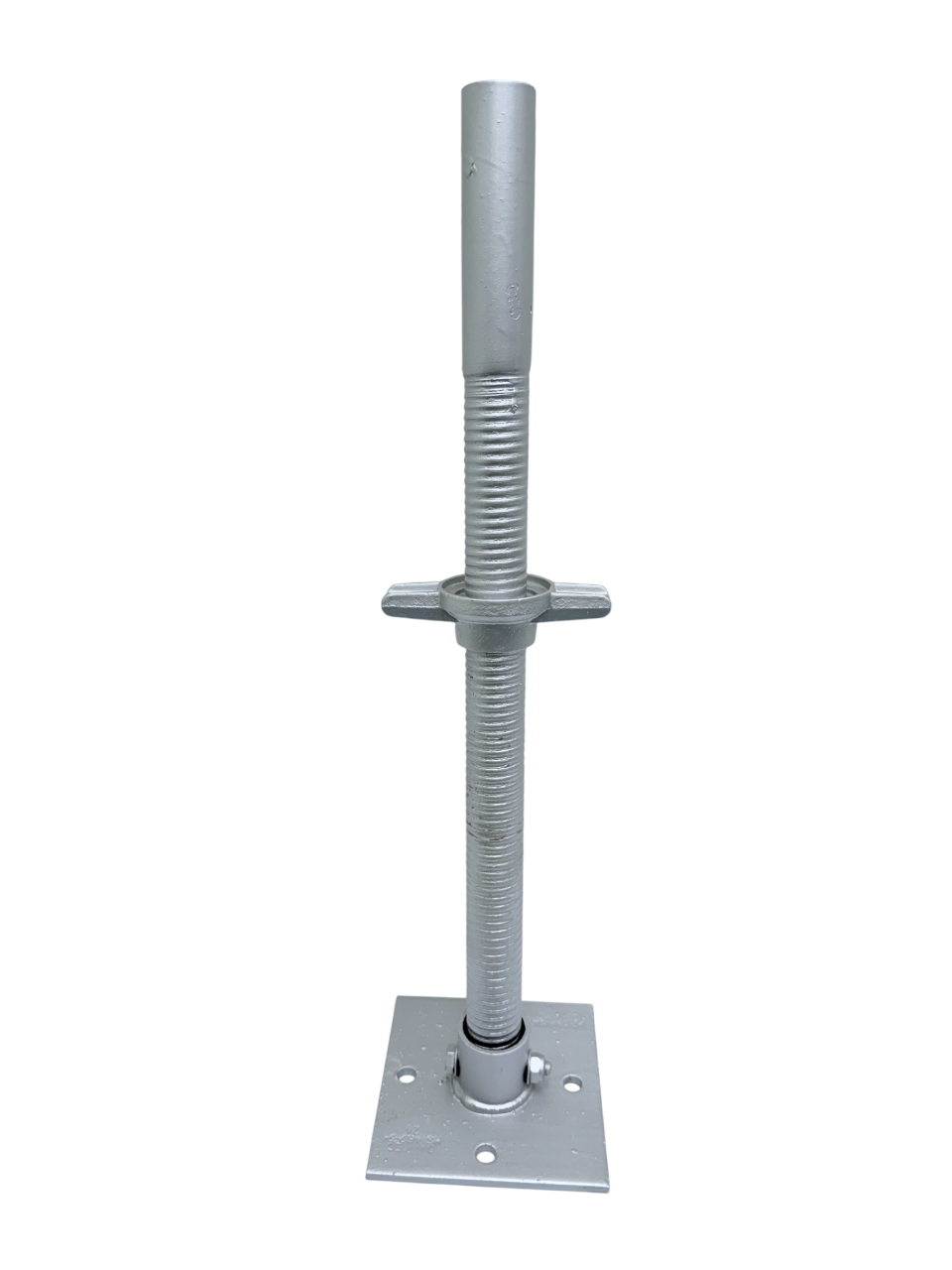

Position the adjustable jack base at distances apart according to the longitudinal and transverse horizontal members.

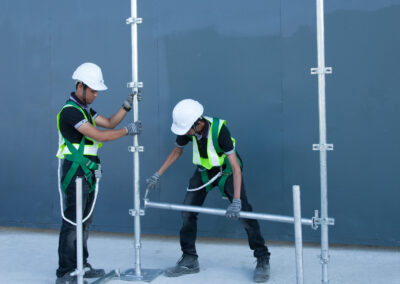

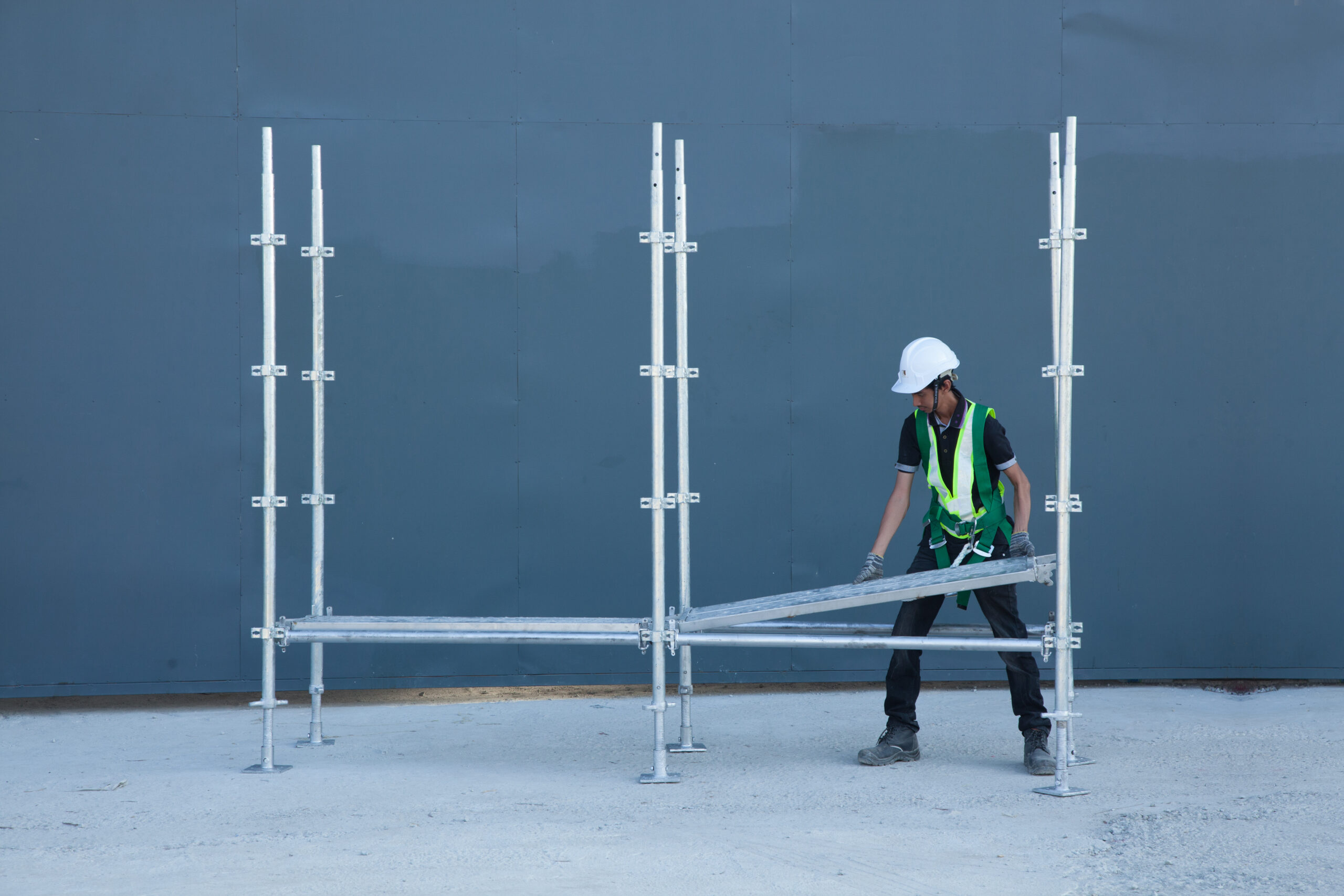

Fit the vertical standards on the adjustable jack base. Fit the horizontal members. Check levels.

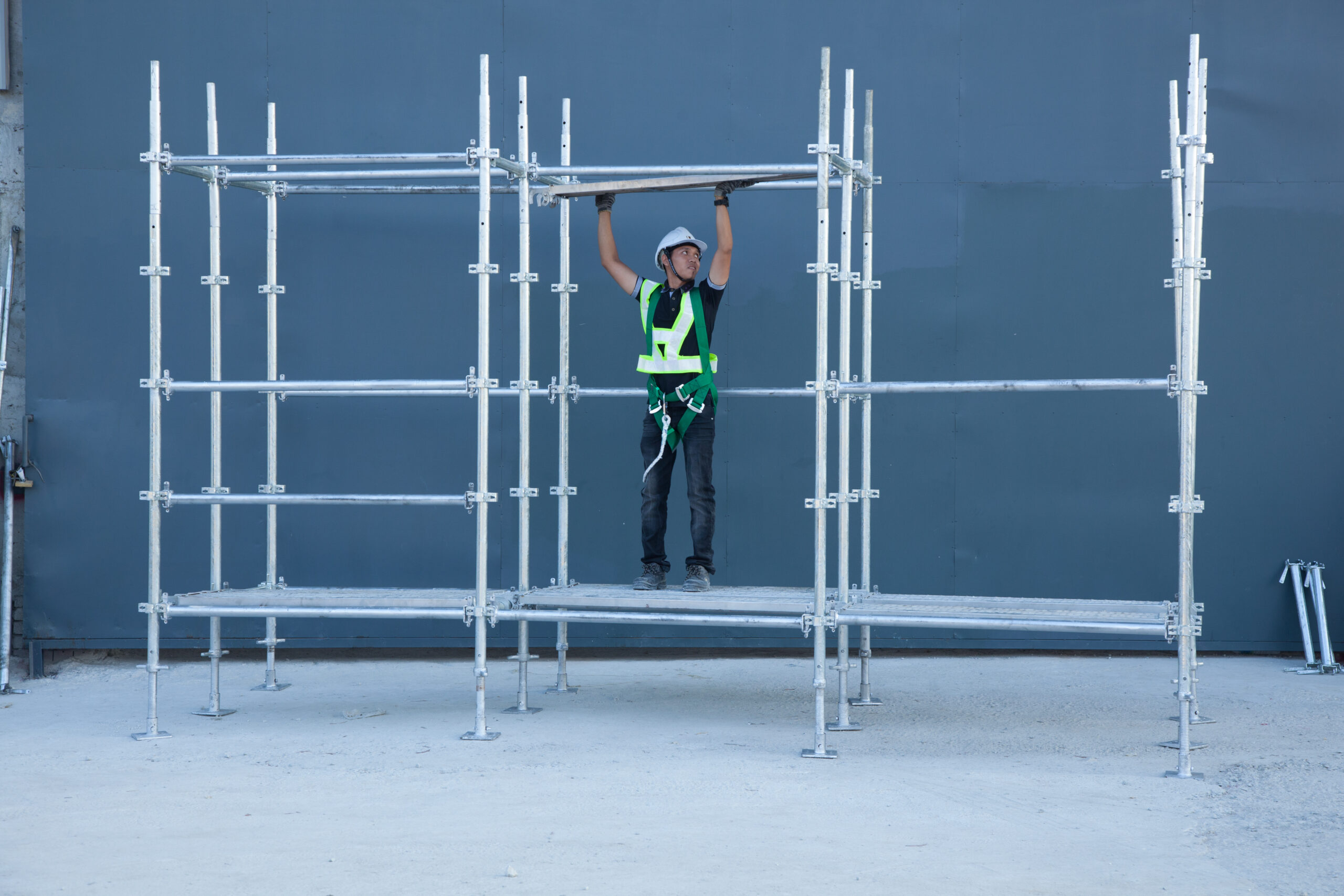

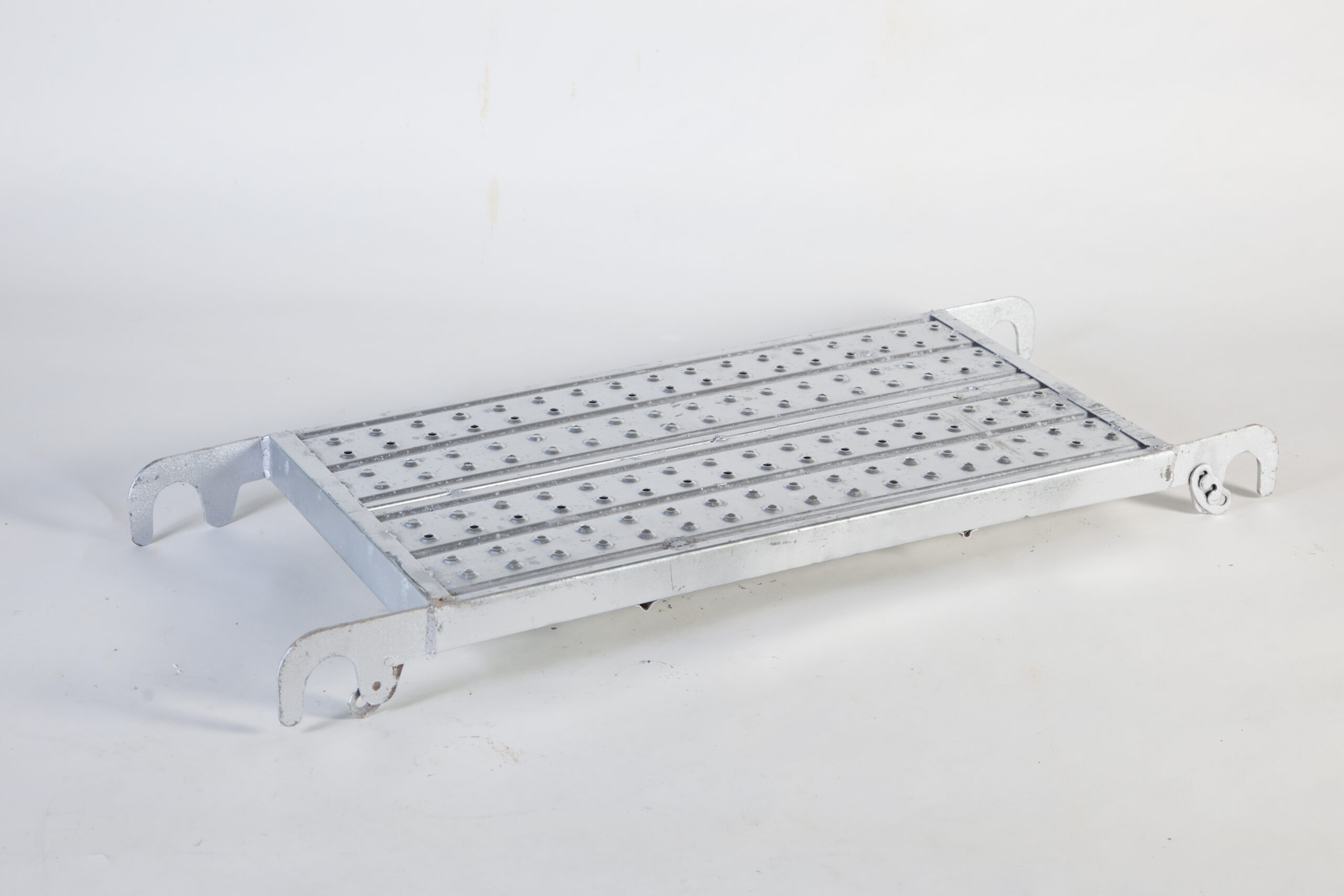

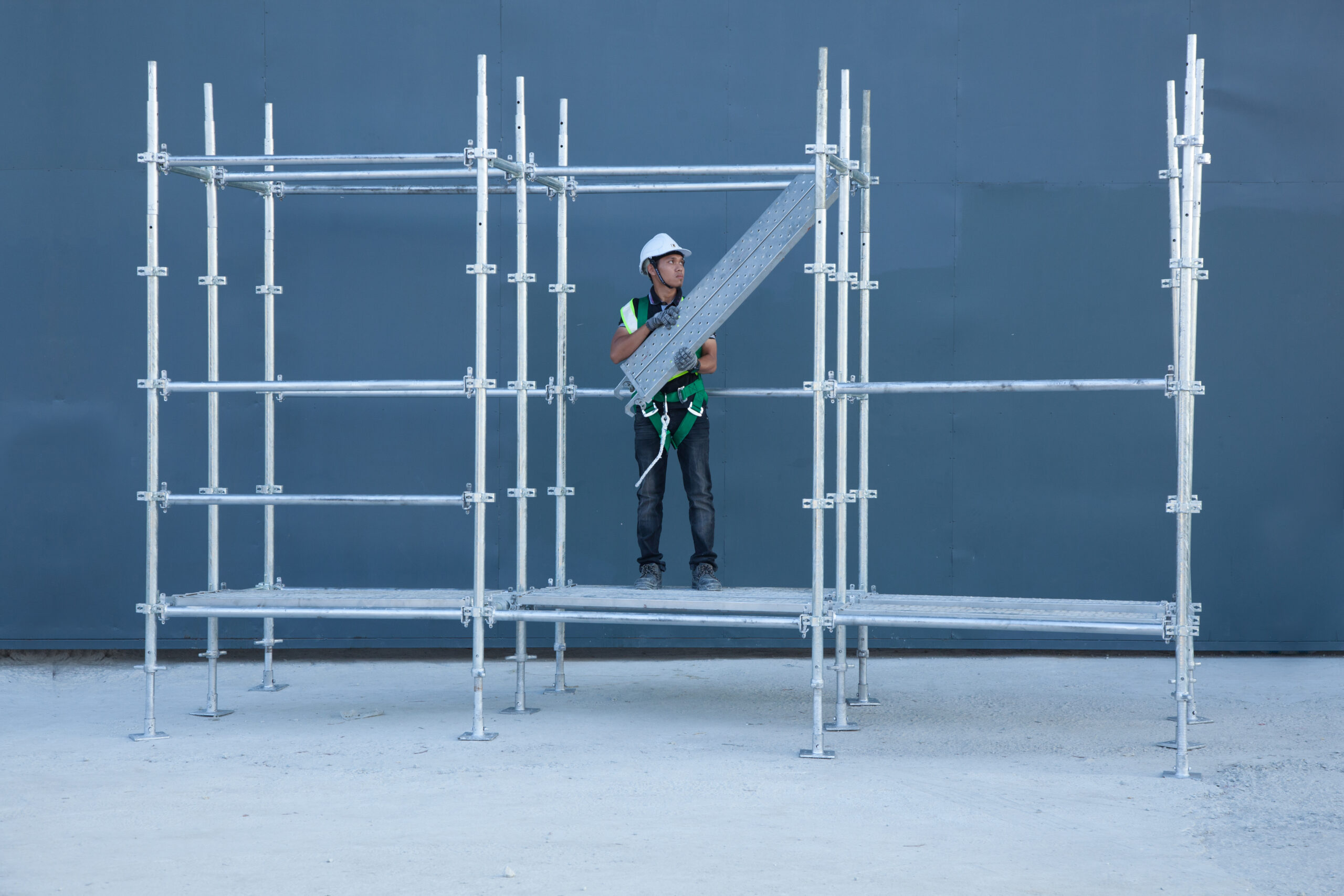

Fit the first platform to assist erection. Install the complete platform in the access cell.

Erect the first stage. Install the horizontal members.

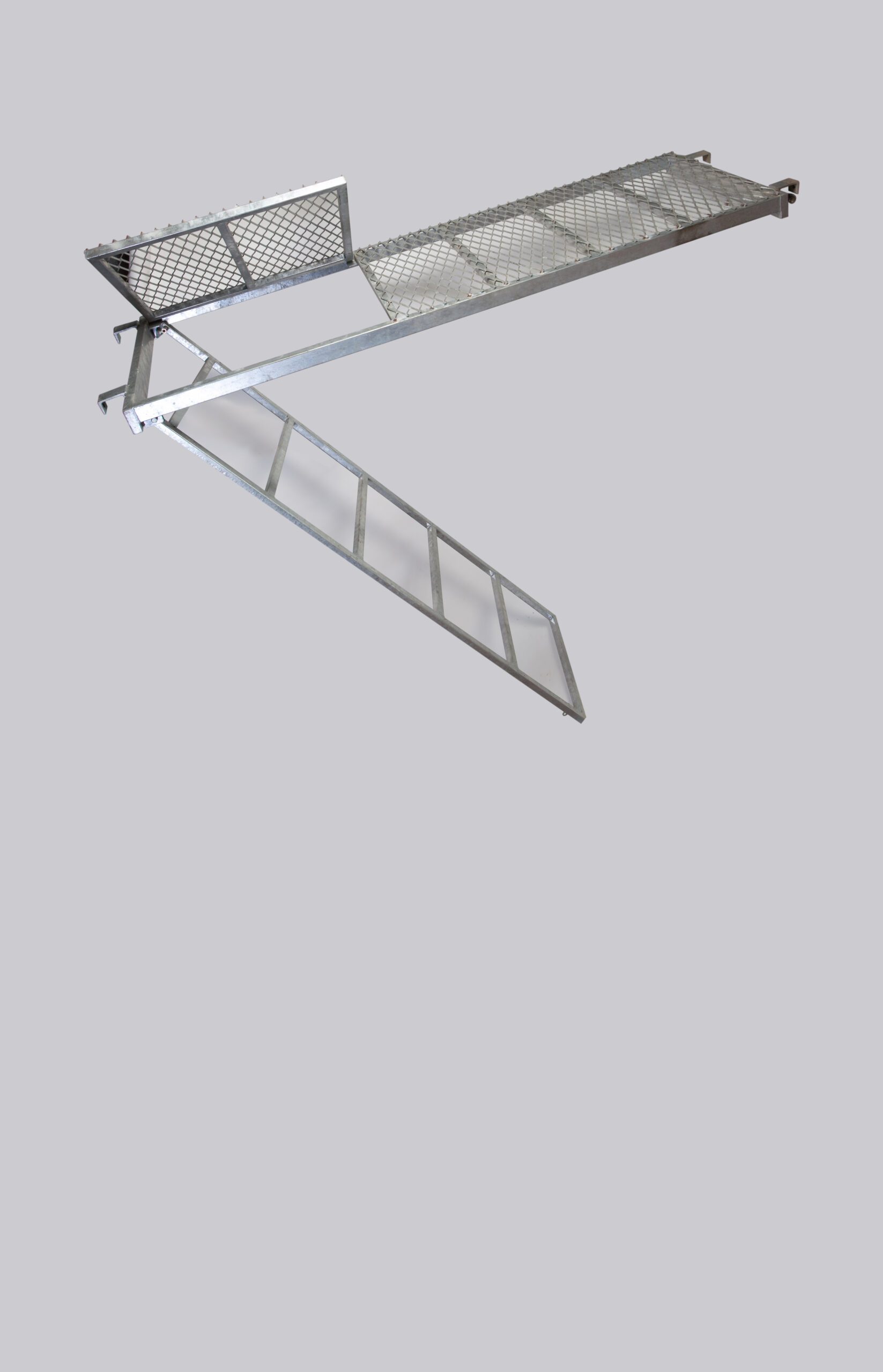

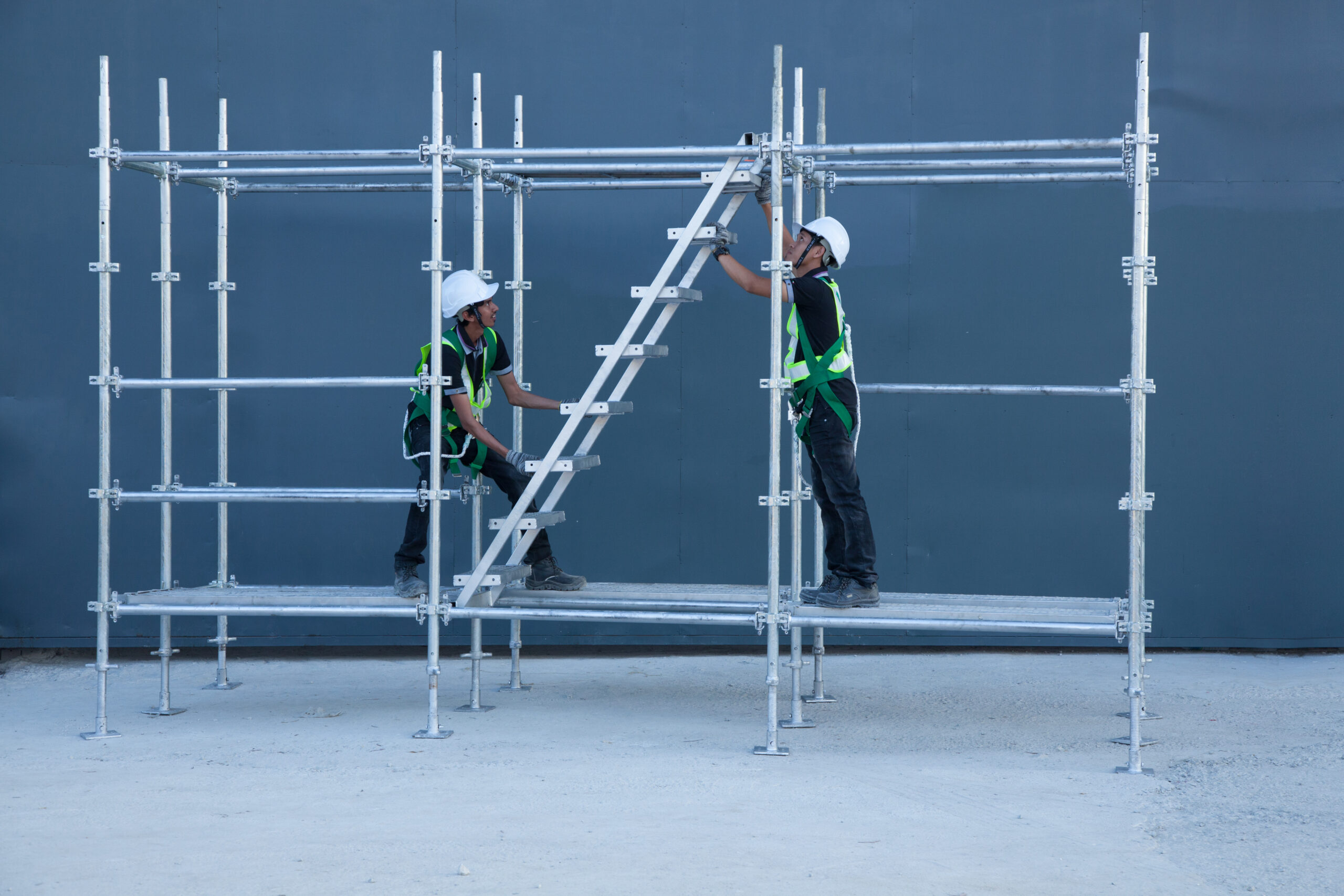

Fit the platform with the paneltrap in the access cell. Fold back the ladder. Check levels continuously.

Fit decking in all the cells of the first stage.

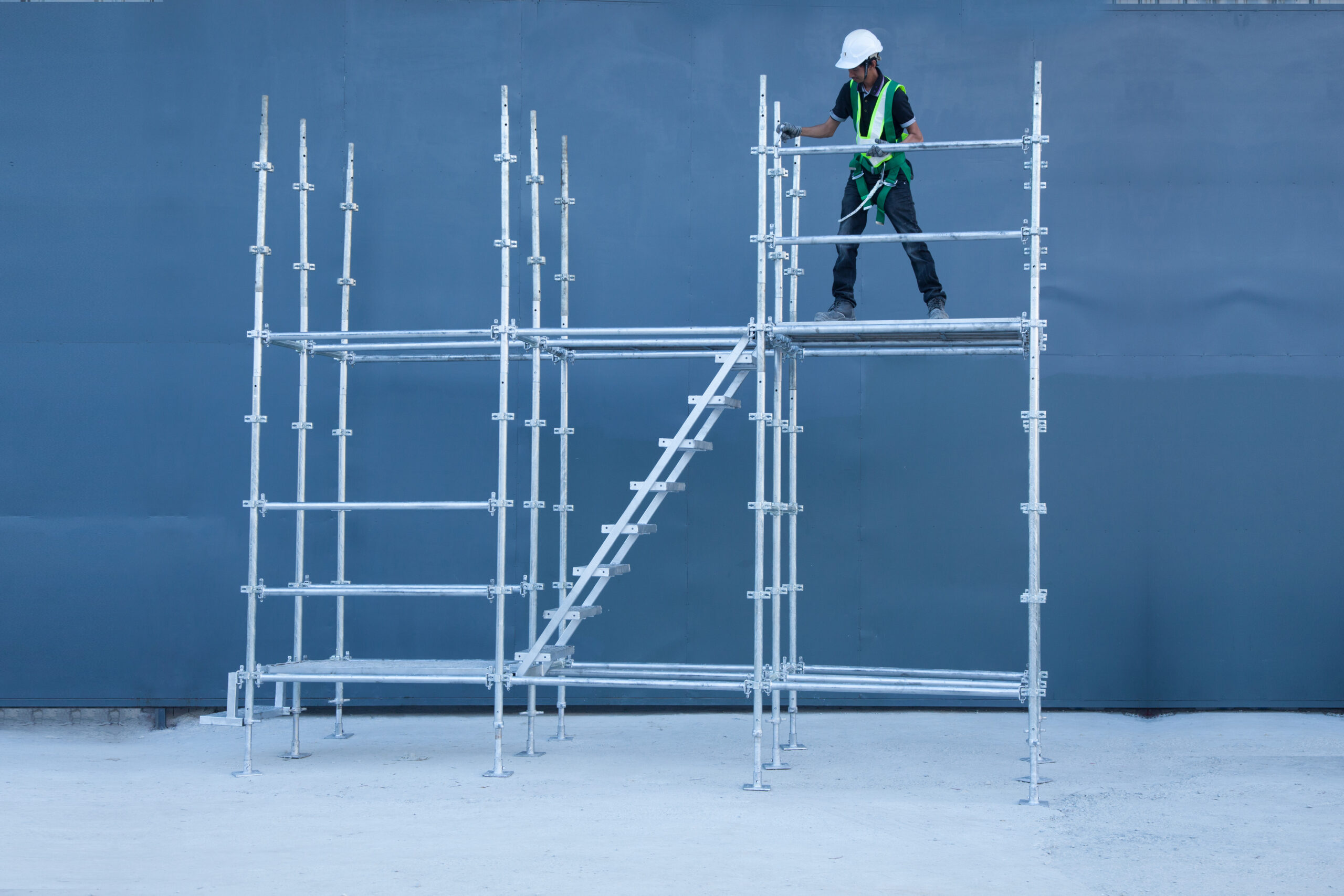

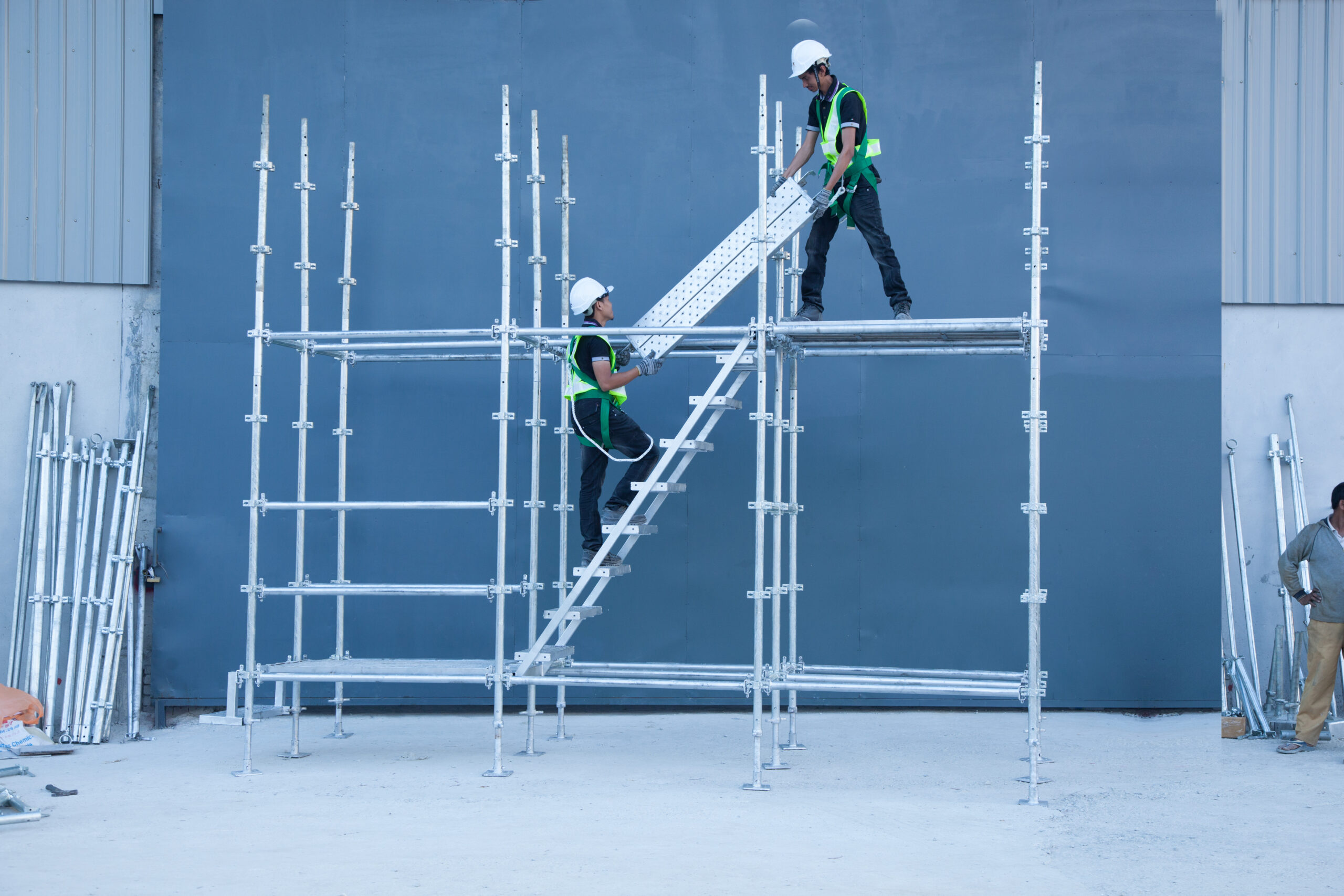

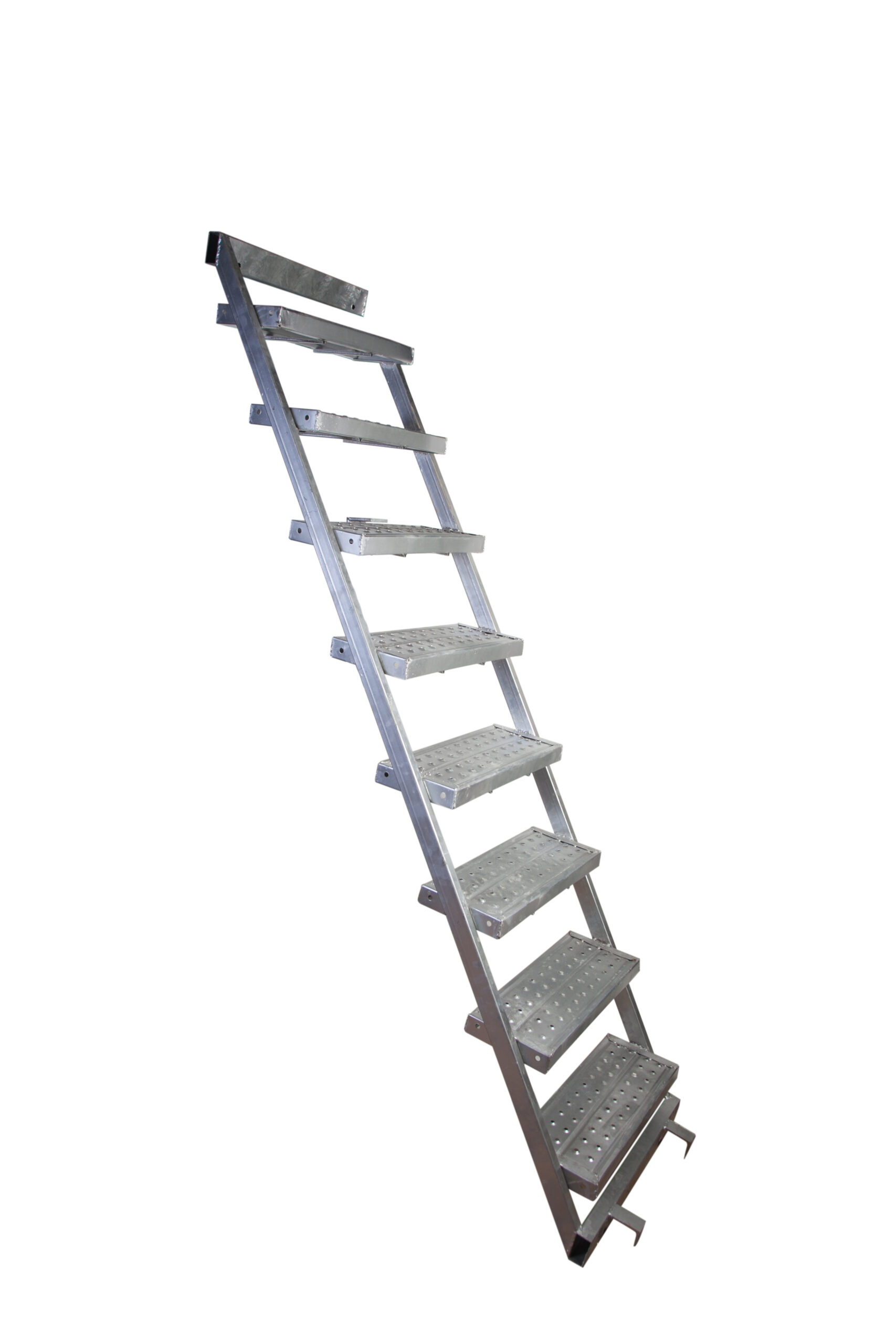

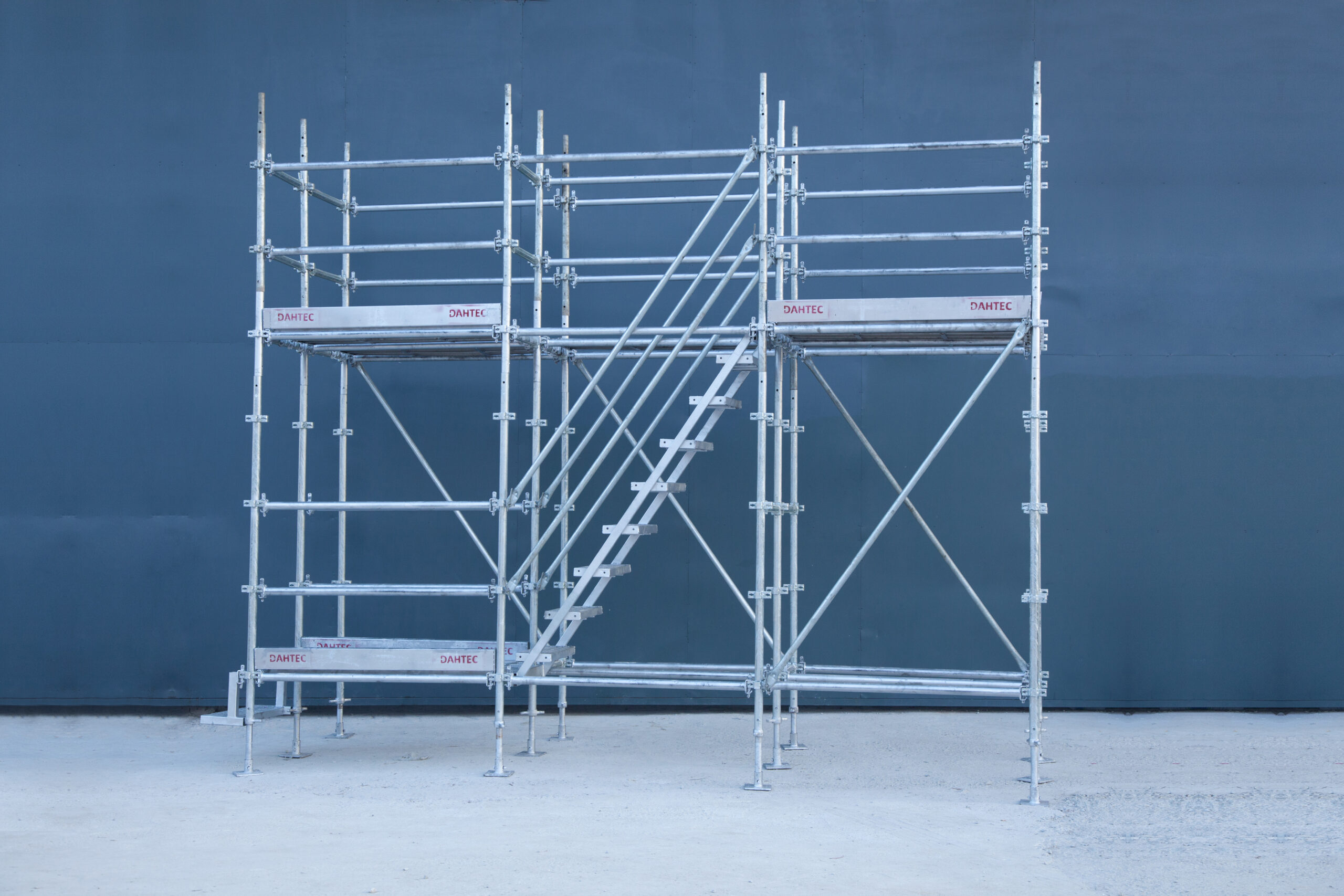

Install the stair.

Access to the first stage and start construct second stage.

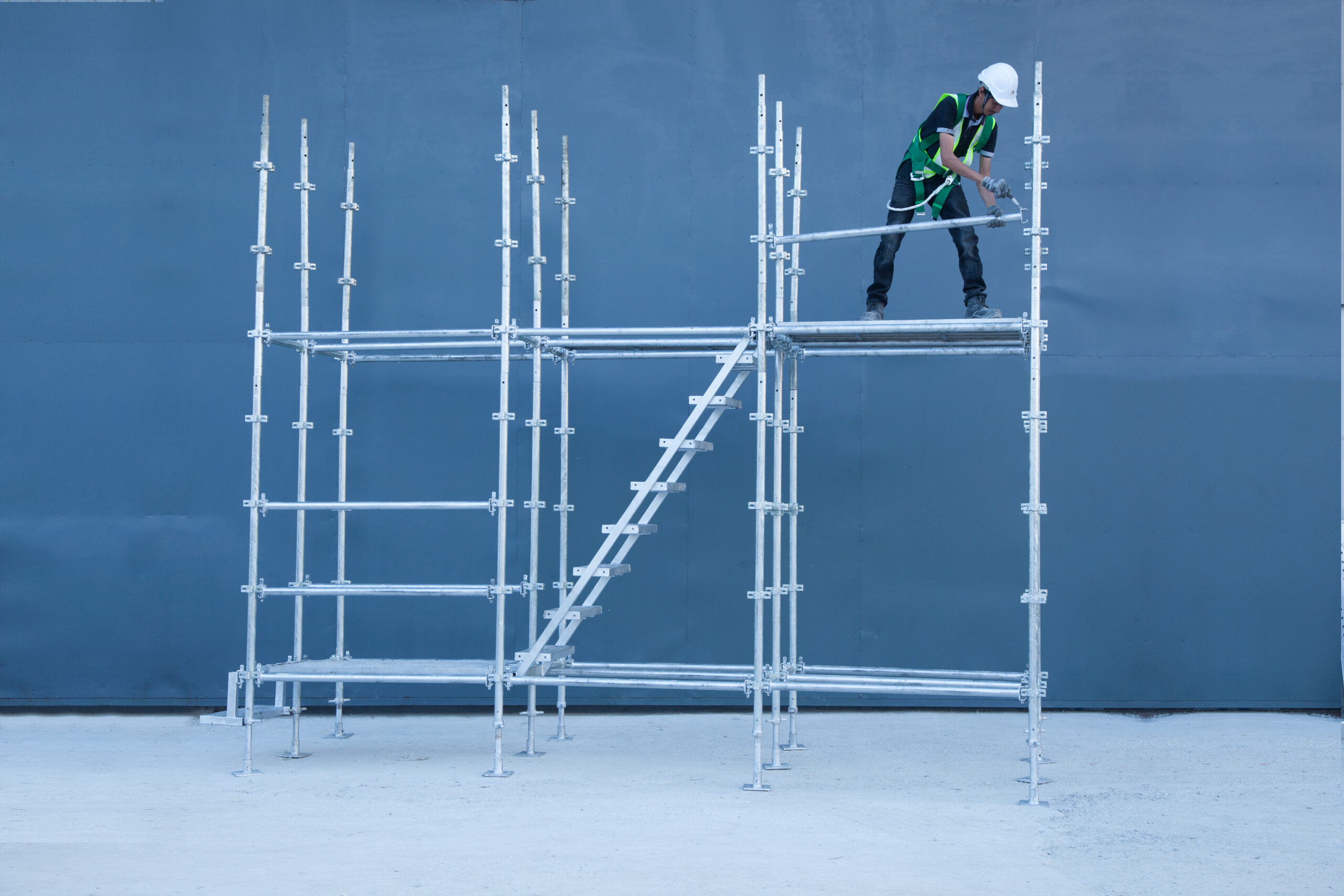

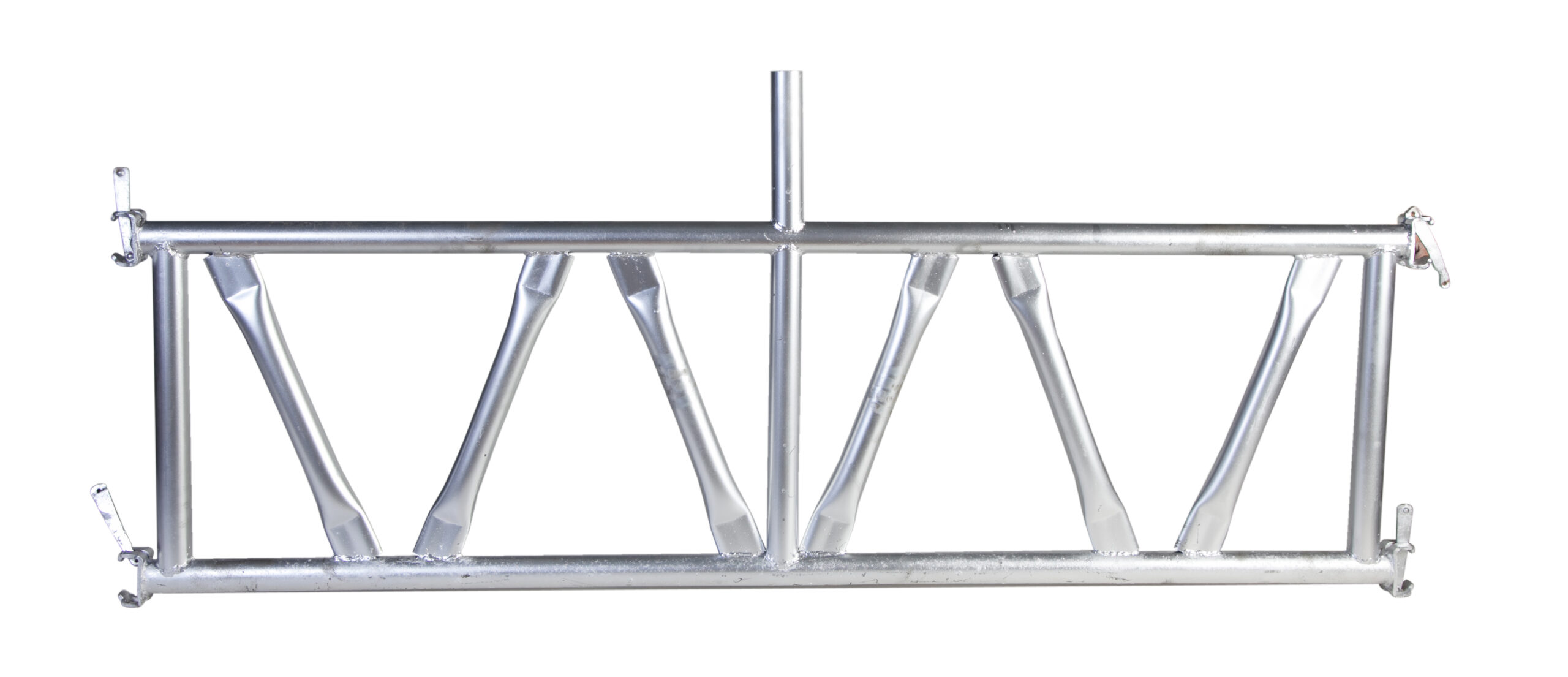

Fit the horizontal members.

Fit the second platform with paneltrap in the access cell. Reversing the position of the stair.

Secure the erection and service guardrail to provide protection during work at the next higher level. Safety thus being assured by the lower guardrail.

Anchor the structure every 20 M2. Continue erection as in the previous stages. Fit all necessary accessories: toe board, brackets, debris, shields, beams, etc. Using individual protective equipment if necessary.

product advantages

Safe Erection

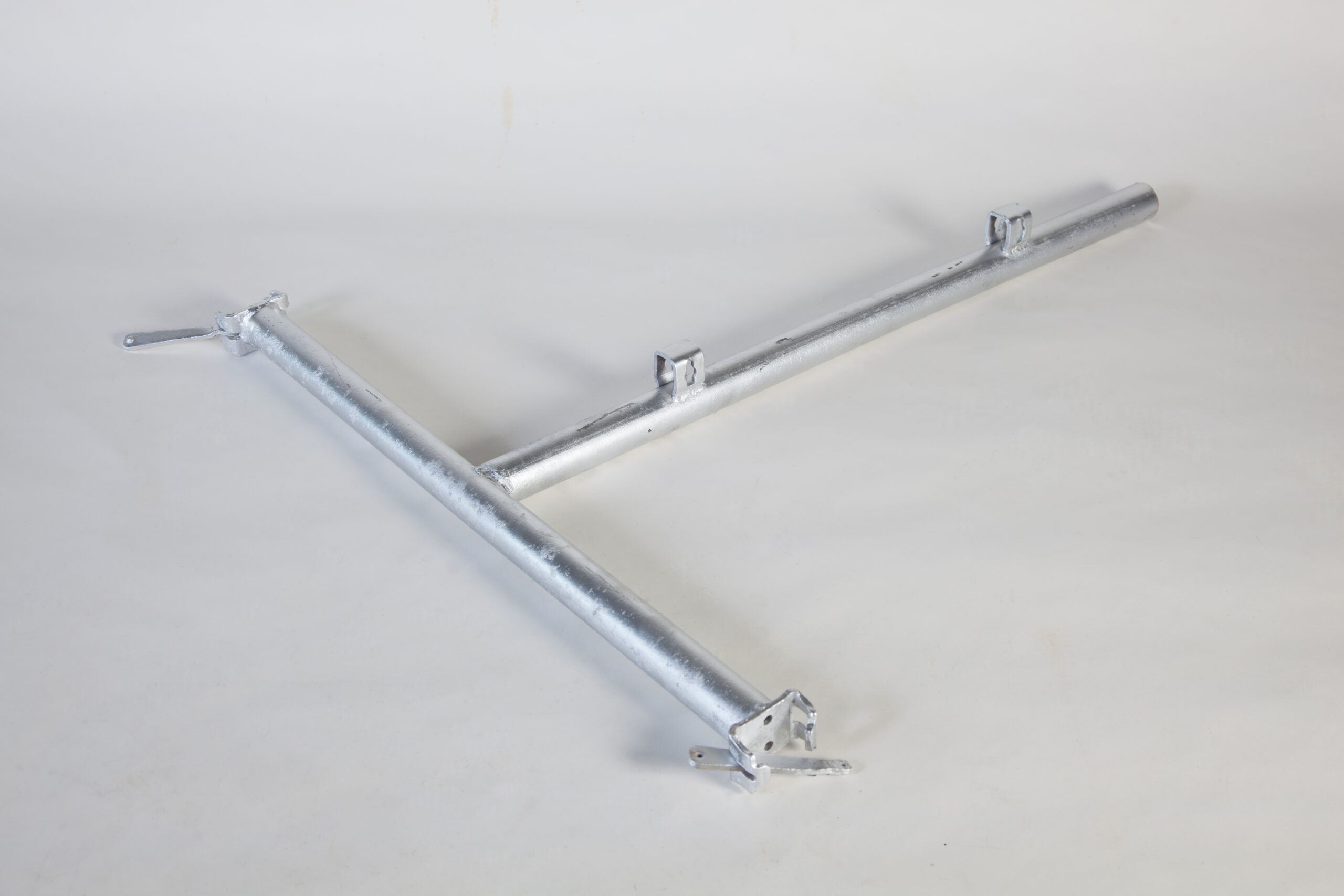

A single erector can secure a horizontal member to a leg. The wedge key immediately produce a secure system.

Multidirectional

During assembly, the wedge clamp system ensures a perfect right-angle attachment between the horizontal members while it allows rotation to any angle from 0 to 90°. The horizontal members can be positioned in any of the major orientations from 0 to 180° on a single stirrup. Two horizontal members can be assembled in parallel.
